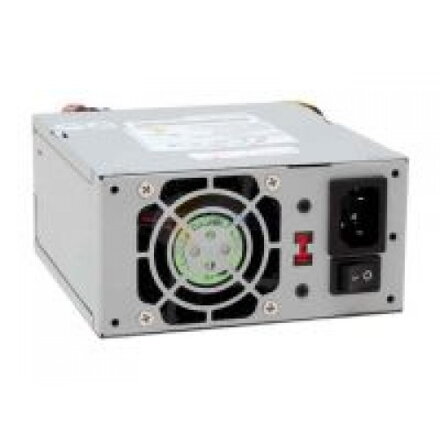

FSP FSP270-50SNV 270W Micro ATX Power Supply

Model
Brand
FSP Group
Model
FSP270-50SNV
Spec
Type
Micro ATX
Maximum Power
270W
Fans
1 x 80mm fan
PFC
No
Main Connector
20Pin
+12V Rails
Single
PCI-Express Connector
No
SLI
No
Modular
No
Power Good Signal
100-500ms
Hold-up Time
10.0 mS minimum : at 230V / 50 Hz.
Efficiency
65% min. at full load
Over Voltage Protection
+5V +3.3V +12V
Input Voltage
115/220-230 VAC
Input Frequency Range
50/60 Hz
Input Current
6A @ 115V, 3A @ 230V
Output
+3.3V@16.7A,+5V@25A,+12V@16A,-12V@0.6A,+5VSB@2.0A
MTBF
100K hours at 25°C
Approvals
CSA, UL, IEC, TUV, NEMKO, CE
Features
Connectors
1 x Main connector (20Pin)

1 x 12V(4pin)

3 x peripheral

1 x Floppy
Features
High efficiency , Low ripple amp;Noise

Output over voltage protection

Short circuit protection on all output

100% burn-in under high ambient temperature (50°C)

Vacuum-impregnated transformer

Line input fuse protection
