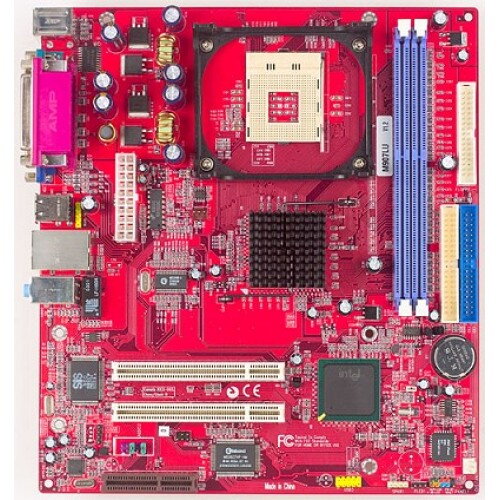

PCCHIPS M907LU/M907HLU

CPU Socket 478 for Intel Pentium 4 processor FSB 533*/400 MHz Chipset 845GV/ICH4 VGA Embedded Intel Extreme 3D Graphics with 32M share memory Memory 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR266/200) Maximum: 2GB Expansion Slots 2 x PCI slots 1 x CNR slot LAN SiS900 10/100Mbps Fast Ethernet controller Audio C-Media CMI9738 4-channel audio Codec Compliant with AC97 2.2 specification IDE 2 x UltraDMA 100/66 Back Panel I/O Ports 1 x PS/2 keyboard 1 x PS/2 mouse 1 x Parallel Port 1 x Serial Port 1 x VGA port 4 x USB 2.0 Ports 1 x RJ 45 Port 1 x Audio I/O (Line-in, Line-out and Mic-in) Internal I/O Connectors amp; Headers 20-pin ATX power supply connector 1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120 1 x IrDA for SIR header 1 x USB header support additional 2 USB2.0 ports 1 x Front panel switch/LED header 1 x USB card reader header CPU / CHS FAN headers 1 x CD in header 1 x Front panel audio header 1 x Speaker header System BIOS AMI 2Mb Flash ROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Full support for ACPI revision 1.0 specification Form Factor Micro-ATX Form Factor, 244*220mm
