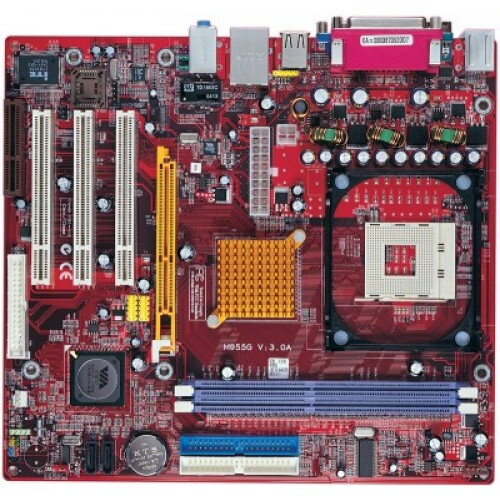

PCCHIPS M955G (V3.0A) Socket 478 and FSB800/DDR400 Motherboard

CPU
Socket 478 for Intel Pentium 4, HT amp; Prescott processor
FSB
800/533/400 MHz
Chipset
VIA PM800/8237
VGA
Embedded UniChrome II 3D Graphics with 64M share memory
Memory
2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400/333/266)
Maximum: 2GB
Expansion Slots
1 x AGP 8X
3 x PCI Slots
1 x CNR slot
LAN
VIA VT6103L 10/100Mbps Fast Ethernet PHY
Audio
Realtek ALC655 6-channel audio codec
Compliant with AC'97 2.3 specification
IDE
2 x UltraDMA 133/100/66
Back Panel I/O Ports
1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Parallel Port
1 x Serial Port
1 x VGA port
4 x USB 2.0 Ports
1 x RJ 45 Port
1 x Audio I/O (Line-in, Line-out and Mic-in)
Internal I/O Connectors amp; Headers
20-pin ATX power supply connector
4-pin ATX 12V power supply connector
2 x USB 2.0 header support additional 4 USB2.0 ports
2 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
CPU / SYS FAN headers
1 x IrDA for SIR header
1 x Speaker header
1 x CD in header
1 x USB card reader header
System BIOS
AMI 4Mb Flash ROM
AMI 2Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification
Form Factor
Micro-ATX Form Factor, 244*220mm
