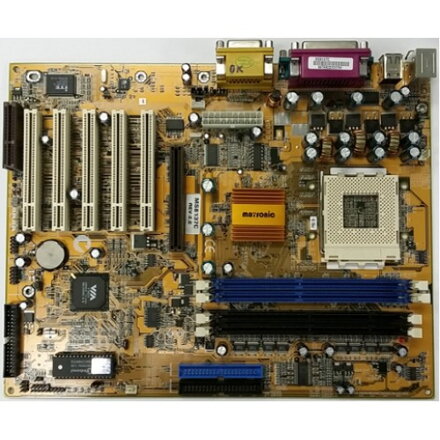

Matsonic MS8137C

SPECIFICATION
Processor
Supports Socket A (Socket-462) for AMD� Athlon� / Athlon� XP / Duron� processor Supports 600MHz up to 2600+ MHz processor and faster
Chipset
VIA Apollo KT266A
Memory
Two 168-pin SDRAM DIMM and two DDR sockets support PC100/133 SDRAM up to 768MB or PC1600/2100 DDR Memory up to 2GB
Two Ultra DMA IDE Ports
Two independent channels for four IDE devices Supports up to PIO mode 4 and Ultra DMA 33/66/100
System BIOS
2MB Flash ROM on board, provides complete ACPI and Legacy PMU;Ultra DMA 66, Multi-boot
Bus Architecture
1 AGP(x4) Slot , 5 PCIs Slots and 1 CNR Slot
I/O Interface
PS/2 Mini-DIN mouse amp; keyboard ports Two USB ports and two extra USB pins One 25-pin female printer port (SPP/EPP/ECP mode) Two serial port (16550 UART) Audio I/O: LINE-Out, LINE-In, MIC One game port and One FDD port Provides IrDA port with optional cable for transceiver
Built-in Ac97 PCI audio
Supports built-in AC97 Digital Audio. Dual full-duplex Direct Sound channels. H/W Sound Blaster Pro DOS Legacy compatibility. FM Synthesis for legacy compatibility. Supports game or MIDI port
Hardware Monitor
Detects CPU temperature, fan speed and current voltages PC Health Monitoring, which allows you to protect your system from problems even before they occur.
Form Factor
Standard ATX form factor Four layers, 30.5 cm x 22.0 cm
