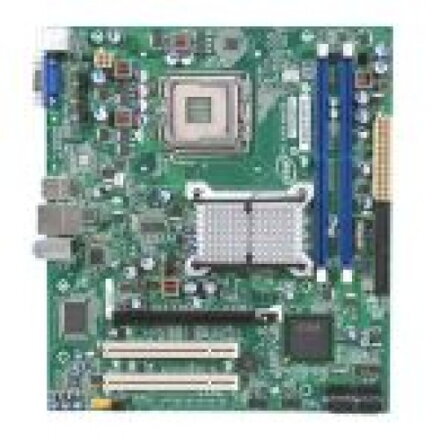

Intel Desktop Board DG41RQ

Features and benefits
Form factor
microATX (9.60 inches by 8.60 inches)
Processor
Support for an Intel® Core™2 Quad processor (95 W TDP) in an LGA775 socket
Support for an Intel® Core™2 Duo processor in an LGA775 socket
Support for an Intel® Pentium® processor in an LGA775 socket
Support for an Intel® Celeron® processor in an LGA775 socket
View all supported processors
Memory
Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 800 or DDR2 667 MHz DIMMs
Support for up to 8 GBÏ of system memory
Chipset
Intel® G41 Chipset
Audio
Intel® High Definition Audio subsystem in the following configuration:

6-channel (5.1) audio subsystem using the Realtek* ALC662 audio codec
Video
Intel® Graphics Media Accelerator X4500 integrated graphics subsystem
I/O control
Legacy I/O controller for serial header, parallel header and PS/2* ports
LAN support
Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Realtek* RTL 8111D
Peripheral interfaces
8 USB 2.0 ports
One serial port header
One parallel port header
Four Serial ATA 3.0 Gb/s interfaces
One Parallel ATA IDE interface with UDMA 33,66,100 support
PS/2 keyboard and mouse ports
Expansion capabilities
One PCI Express* x16 bus add-in card connector
Two PCI Conventional* bus connectors
