Popis

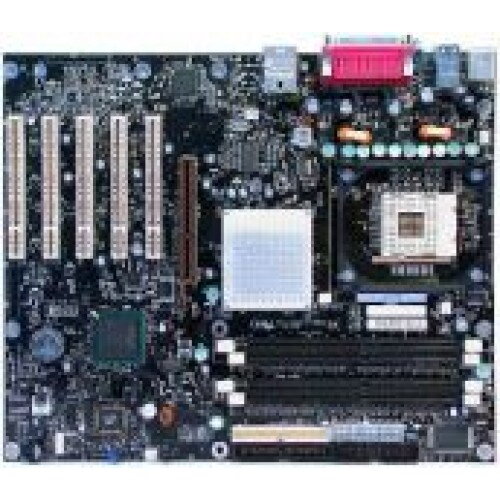

Form Factor ATX (11.52 inches by 9.6 inches [292.61 mm by 243.84 mm])
Processor Support for an Intel® Pentium® 4 processor in a mPGA478 socket with a 533/800 MHz system bus
Memory Four 184-pin DDR SDRAM DIMM sockets
Support for DDR 400 and DDR 333
Support for up to 4 GB system memory
Chipset Intel® 875P Chipset
I/O Control LPC Bus I/O controller
Audio Optional (Direct Customers Only) SoundMAX 4 XL with AudioESP audio subsystem using the Analog Devices AD1985 codec
Video Universal 0.8/1.5 V AGP 3.0 connector (with integrated retention mechanism) supporting 4x and 8x AGP cards
Peripheral Interfaces Eight USB 2.0 ports
One serial port
One parallel port
Two Serial ATA IDE interfaces
Two Parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support
One diskette drive interface
PS/2* keyboard and mouse ports
Expansion Capabilities Five PCI bus add-in card connectors
Processor Support for an Intel® Pentium® 4 processor in a mPGA478 socket with a 533/800 MHz system bus
Memory Four 184-pin DDR SDRAM DIMM sockets
Support for DDR 400 and DDR 333
Support for up to 4 GB system memory
Chipset Intel® 875P Chipset
I/O Control LPC Bus I/O controller
Audio Optional (Direct Customers Only) SoundMAX 4 XL with AudioESP audio subsystem using the Analog Devices AD1985 codec
Video Universal 0.8/1.5 V AGP 3.0 connector (with integrated retention mechanism) supporting 4x and 8x AGP cards
Peripheral Interfaces Eight USB 2.0 ports
One serial port
One parallel port
Two Serial ATA IDE interfaces
Two Parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support
One diskette drive interface
PS/2* keyboard and mouse ports
Expansion Capabilities Five PCI bus add-in card connectors
