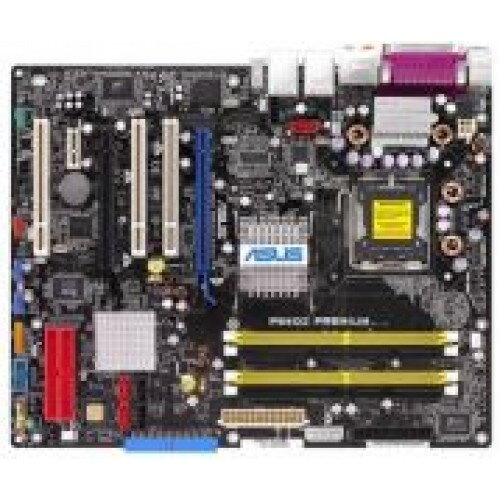

ASUS P5WD2 Premium

Specifications
CPU
- LGA775 socket for Intel® Pentium 4/Celeron CPU

- Intel Pentium® Processor Extreme Edition amp; Intel

Pentium® D Processor ready

- Compatible with Intel® 05B/ 05A and 04B/04A processors

- Intel® Hyper-Threading Technology ready
Chipset
Intel 955X

Intel ICH7R
Front Side Bus
1066/ 800/ 533 MHz
Memory
Dual channel memory architecture

4 x 240-pin DIMM sockets support max. 8GB DDR2 800/ 667/ 533 ECC and non-ECC memory

Native DDR2 800 Support

Intel MPT (Intel Memory Pipeline Technology)
Expansion Slots
1 x PCI Express x16 slot for discrete graphics card

1 x Universal PCI-E Slot ( x4 mode)

1 x PCI Express x1

3 x PCI
Storage/RAID
Intel ICH7R South Bridge:

*1 x UltraDMA 100/66/33

*4 x Serial ATA I/II 3.0Gb/s with Intel Matrix Storage Technology with RAID 0, 1, 5, 10 support



Silicon Image 3132 SATA controller:

*1 x Internal Serial ATA I/II

*1 x External Serial ATA



ITE IDE controller:

* 2 x UltraDMA 133/100/66
LAN
Dual Gigabit LAN controllers:

*1 x Intel PCIe Gigabit LAN Controller

*1 x Marvell 88E8001 Gigabit LAN Controller, featuring AI NET2
Audio
Realtek ALC882D High Definition Audio 8-channel CODEC

Support Multi-streaming, Jack-sensing and Jack-retasking functions

Coaxial, Optical S/PDIF out on back I/O port

Features Dolby Digital Live technology
IEEE 1394
TI 1394a controller supports 2 x 1394a ports
USB
Max. 8 USB2.0/1.1 ports
ASUS Unique Features
WiFi-TV PCI card (optional)

(Optional, for WiFi-TV Edition only)

-Digital TV(DVB-T only), Analog TV, FM

-WiFi@home 802.11a/b/g

Stack Cool 2 patented fanless cooling system

"SATA on the Go" External SATA connector

AI Quiet
Overclocking Features
AI NOS™ (Non-delay Overclocking System)

ASUS CPU Lock Free

Precision Tweaker:

- vDIMM: 8-step DRAM voltage control

- vCore: Adjustable CPU voltage at 0.0125 increment

- SFS (Stepless Frequency Selection): allowing FSB tuning from 100MHz up to 450MHz at 1MHz increment

- PCIe x16 Frequency: allowing PCIe x16 frequency from 90MHz up to 150MHz at 1MHz increment

AI Overclocking (intelligent CPU frequency tuner)

Adjustable FSB/DDR ratio. Fixed PCI/PCIe frequencies.

ASUS AI Booster utility

ASUS C.P.R.(CPU Parameter Recall)
Other ASUS Special Features
CrashFree BIOS 2

Q-Fan2

Multi-language BIOS

MyLogo2
BIOS
8 Mb Flash ROM,AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
Manageability
WOL by PME,WOR by PME, Chassis Intrusion
Back Panel I/O Ports
1 x Parallel

1 x Optical + 1 x Coaxial S/PDIF Output

1 x PS/2 Keyboard

1 x PS/2 Mouse

2 x RJ45

4 x USB 2.0/1.1

1 x IEEE1394a

1 x External SATA port

8-Channel Audio I/O
Internal I/O Connectors
2 x USB 2.0 connectors supports additional 4 USB 2.0 ports

1 x IEEE1394a connectors

1 x COM connector

1 x GAME/MIDI connector

CPU / 2 x Chassis / Power Fan connectors

Front panel High Definition Audio connector

Chassis Intrusion connector

CD audio-in connector

24-pin ATX Power connector

4-pin ASUS EZ Plug connector
Support Disc
Drivers

ASUS PC Probe 2

ASUS LiveUpdate Utility

Anti-virus software (OEM version)
Accessories
InterVideo WinDVD Suite (OEM version)

1 x IEEE1394a port module

5 x SATA cables

SATA power cable for 5 devices

1 x 2-port USB2.0 / Game module

1 x COM Port module

1 x GT Soft Bridge for future upgrade

2 x UltraDMA 133/100/66 cable

1 x IDE cable

1 x FDD cable

1 x I/O Shield

User' s manual
WiFi-TV Accessories (bundle version only)
CyberLink PowerCinema (OEM version)

PAL to NTSC Adapter

1 x Omnidirectional dual-band wireless antenna

1 x FM Antenna

1 x Remote control + USB Receiver

WiFi-TV User's Manual

CyberLink PowerDirector
Form Factor
ATX Form Factor, 12"x 9.6"(30.5cm x 24.5cm)
