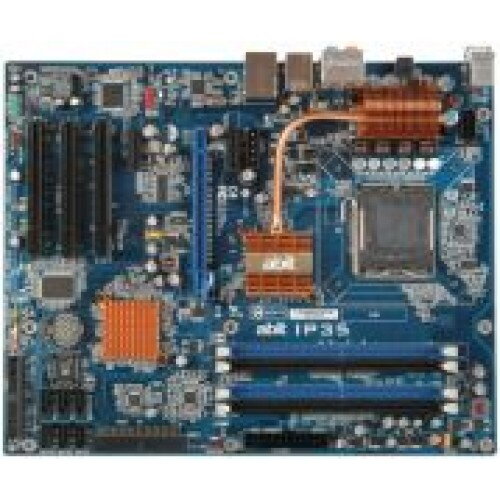

ABIT IP35

CPU
Support Intel® Core⢠2 Extreme/Duo/Quad processors with 1333/1066/800MHz FSB
Support Intel® Core⢠2 Extreme/Quad/Duo amp; Pentium® Dual Core Processors
Chipset
Intel® P35 Express / ICH9R Chipset
Memory
4 X 240-pin DIMM sockets support max. memory capacity 8GB
Supports Dual channel DDR2 800/667 un-buffered Non-ECC memory
LAN
Onboard Gigabit LAN controller supports 10/100/1000M Ethernet
Audio
On board 7.1 CH HD Audio CODEC
Supports auto jack sensing and optical S/PDIF Out
HDMI ready header (SPDIF header)
Expansion Slots
1 x PCI-E X16, 2 x PCI-E X1, 3 x PCI
Internal I/O
1 x Floppy Port supports up to 2.88 MB
1 x ATA 133/100/66/3 IDE connector
6 x SATA 3Gb/s connector
2 x IEEE1394, 4 x USB header (support 8 ports)
1 x FP-Audio
Back Panel I/O
1 x PS/2 Keyboard, 1 x PS/2 Mouse
abit Silent OTESâ¢
1 x S/P DIF Out
7.1 CH Audio connector (Front, Line-in, MIC-in, Center/Subwoofer, Surround, Rear Surround)
4 x USB 2.0
1 x RJ-45 LAN connector
Serial ATA
6 x SATA 3Gb/s offer by Intel® ICH9R support Intel® Matrix Storage Tech(AHCI amp; RAID0/1/5/10)
IEEE 1394
Supports 2 Ports IEEE 1394 at 400Mb/s transfer rate.
Form Factor
ATX form factor 305 x 245mm
PCB Color: Blue
RoHS
100% lead-free process and RoHS compliant
abit Engineered
abit Silent OTES⢠Technology
Japanese made Low ESR and high ripple conductive polymer aluminum solid state capacitor around the CPU socket
100% Japanese made capacitor
