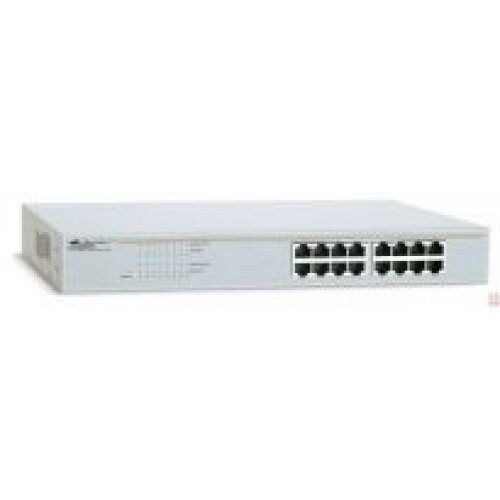

Allied Telesis AT-GS900/16

AT-GS900/ 16

10/ 100/ 1000T x 16 ports unmanaged Gigabit switch



Performance

14, 880pps for 10Mbps Ethernet

148, 800pps for 100Mbps Ethernet

1, 488, 000pps for 1000Mbps Ethernet

Switching Capacity Up to 23.8Mpps

MAC Addresses Up to 8K

Packet Buffer 256KB

Half/ Full duplex

Auto-negotiation

MDI/ MDIX

Interface Connections

10/ 100/ 1000TX RJ-45

Power Characteristics

Voltage 100-240vAC

Frequency 50/ 60Hz

Current 1.0A

Power Consumption Max 28W

Environmental Specifications

Operating Temp. 0°C to 40°C (32°F to 104°F)

Non-operating Temp. -25°C to 70°C (-13°F to 158°F)

Operating Humidity 5% to 90% non-condensing

Storage Humidity 5% to 95% non-condensing

Technical Specifications

Physical Characteristics

Dimensions 4.40 x 44.0 x 33.0 cm

(1.75 x 12.99 x 9.11 in)

AT-GS900/ 24: 4.36 x 44.0 x 22.35 cm

(1.72 x 17.34 x 8.80 in)

Weight 2.38kg (5.25lbs)

Wall-mount or Desktop

All units come with Wall amp; 19" Rack mount brackets

Standards amp; Compliance

IEEE 802.3 10T Ethernet

IEEE 802.3u 100TX Fast Ethernet

IEEE 802.3ab 1000T Gigabit Ethernet

IEEE 802.3z Full duplex

IEEE 802.3x Flow control
