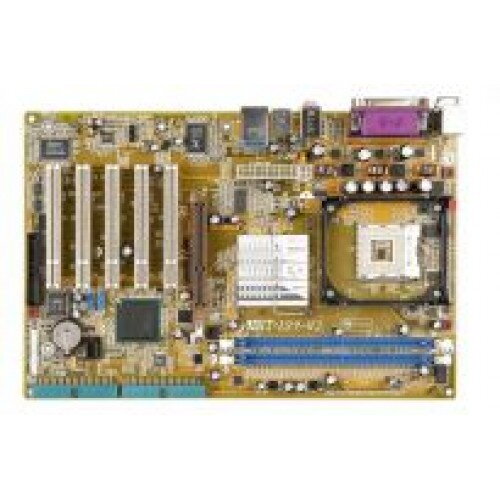

ABIT IS7-V2

Specifications


CPU
Supports Intel Pentium 4 Socket 478 processors with 800/533 (Prescott and Northwood) MHz and 400MHz (For Northwood only) FSB
Supports Intel Hyper-Threading Technology


Chipset
Intel 848P / ICH5
Supports DDR 400 Memory
Supports Advanced Configuration and Power Management Interface (ACPI)


Memory
Two 184-pin DIMM sockets
Supports 2 DIMM Single Channel DDR 400 memory (Max. 2GB)


AGP
Accelerated Graphics Port connector supports AGP 8X/4X (0.8V/1.5V)


SATA 150
2 channels Serial ATA 150MB/s data transfer rate


LAN
On board 10/100Mb LAN


USB 2.0
8 ports USB 2.0 Supports 480 Mb/s data transfer rate


Audio
6-Channel AC 97 CODEC on board (ALC658)


ABIT Engineered
ABIT SoftMenu⢠Technology
ABIT EQâ¢
ABIT FlashMenuâ¢


Internal I/O Connectors
1 x AGP, 5 x PCI slots
1 x Floppy Port supports up to 2.88MB
2 x Ultra DMA 33/66/100 Connectors
2 x SATA 150 Connectors
2 x USB 2.0 headers
1 x CD-IN


Back Panel I/O
1 x PS/2 Keyboard, 1 x PS/2 mouse
1 x Printer Port, 1 x COM port
1 x Audio connector (Front Speaker, Line-in, Mic-in)
2 x USB 2.0
2 x USB 2.0, 1 x RJ-45 LAN Connector


Miscellaneous
305 x 200 mm ATX form factor
