Printer description

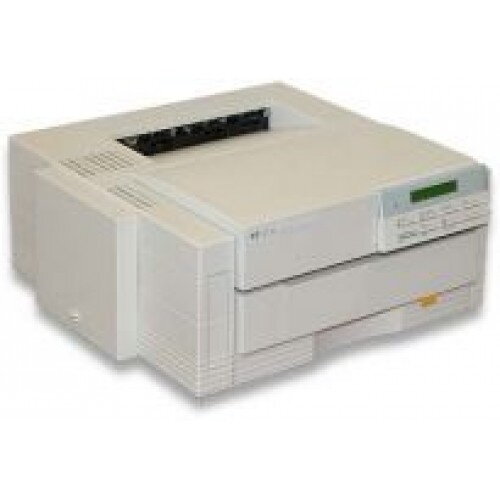

The HP C2003A #ABA LaserJet 4L series printer provides 300 dots per inch (dpi) description resolution, plus built-in Resolution Enhancement technology (REt) and built-in Memory Enhancement technology (MEt) with a throughput of up to 4 pages per minute. It has the ability to scale fonts, enhanced PCL 5 Language, EconoMode printing, an Instant-On Fuser, and the HP-GL/2 enhancement for plotter output.
Printer features
PCL Printer Language
Enhanced Level 5
Interfaces
Bi-Tronics parallel
Optional I/O (MIO)
No
Status Checking for HP 3000
No
Video I/O
No
AppleTalk I/O
No
Font Cartridge Slots
0
Total Memory
1 MB
User Memory
820 Kb at 300 dpi
Fonts Per Page
Limited Only By Memory
Downloadable Soft Fonts
Limited Only By Memory
Macros/Forms
Limited Only By Memory
Forms Overlay
Yes
Rules, Gray Shades, and Patterns
Yes
Character Height
Limited Only By Memory and Page Size
Duplex
No
Auto Font Rotation
Yes
Macro Cartridge Support
No
Page Count
*Yes
Page Protect
Yes
* The Page Count is lost if the HP LaserJet 4L series printer is unplugged.
Resident fonts
ORIENT
SYM. SET
SPAC.
PITCH
PT. SIZE
STYLE
STROKE
TYPEFACE
The HP C2003A #ABA LaserJet 4L series printer contains the following resident Intellifont and TrueType typefaces with the following styles and stroke weights:
Intellifont Typeface
Stroke weights
Albertus
Medium, Extrabold
Antique Olive
Medium, Italic, Bold
Coronet
Courier
Medium, Italic, Bold, Bold Italic
Letter Gothic
Medium, Italic, Bold
CG Times
Medium, Italic, Bold, Bold Italic
Univers
Medium, Italic, Bold, Bold Italic
Univers Condensed
Medium, Italic, Bold, Bold Italic
TrueType Typeface
Wingdings
NOTE:
The HP LaserJet 4L series printer automatically rotates fonts to the orientation specified. Thus, all fonts can be printed in portrait, landscape, reverse portrait, and reverse landscape.
Resident symbol sets
See Symbol Set Tables on Pages E-2 to E-9 of the HP LaserJet 4L Series Printer's User's Manual (5/93).
Cartridge fonts
The HP LaserJet 4L series printer does not support font cartridges.
Memory (RAM) expansion
Install up to 1 MB of optional memory for a total of 2 MB installed.
C2024-60100 1 MB (Obsolete)
1,024 KB
NOTE:
Memory does not increase the printer's 8KB (8,192 byte) parallel I/O buffer size or increase the speed of the HP LaserJet 4L LaserJet series printer.
Optional memory requirements
Full page (letter-sized) 150 dpi graphics
None
Half page (letter-sized) 300 dpi graphics
None
Full page (letter-sized) 300 dpi graphics
None
Full page (legal-sized) 300 dpi graphics
None
NOTE:
The optional memory required for the HP LaserJet 4L series printer is directly influenced by the complexity of the graphics and soft fonts being used. With the introduction of MEt, optional memory may not be required for graphics printing. However, adding additional memory may enhance printer performance.
Page protect on (memory usage)
Auto
0 KB
Text and graphics resolution (DPI)
Text resolution with standard memory
Text
300 x 300 Dots Per Inch (DPI)
Graphics resolution with standard memory
75 dpi
Full page
100 dpi
Full page
150 dpi
Full page
300 dpi
Full page
Performance
Pages per minute
Up to 4
First Page (after receipt of data)
Less than 34 seconds
Warm-up Time (depends on amount of memory)
0 seconds (instant-on)
Duty Cycle
Up to 8,000 pages
Upgrade from earlier printer
None
Paper handling
Standard Input Trays
1
Paper Cassette
Capacity (Letter, Legal, Executive, A4)
100 Sheets
Media Load
Face down, top to front of printer
Manual Feed
Capacity (Paper)
1 Sheet
Media Load
Face up, top toward printer
Capacity (Envelope)
1 Envelope
Media Load
Face up, flap to left
Optional Input Trays
None
Standard Output Trays
1
*Capacity (Facedown, correct order)
50 Sheets
Job Offset
No
* Although there is not a rear output tray, the paper can be directed to exit out the rear of the HP LaserJet 4L series printer by adjusting the paper path knob.
Paper specifications - HP LaserJet 4L series printer product specifications
Media selection
Maximum Paper Size
8.5 x 14 inches
Minimum Paper Size
3.75 x 7.5 inches
Basis Weight
Manual Feed Slot
16 to 36 pounds (60 to 157 g/m sq.)
Paper Cassette
16 to 28 pounds (60 to 105 g/m sq.)
Caliper (thickness)
0.003 to 0.008 in. (3.0 to 7.0 mils)
Moisture Content
4% to 6% by weight
Smoothness
100 to 250 Sheffield (100 to 180 for 36-42 lbs.)
Acid Content
5.5 pH minimum
Grain
Long Grain
NOTE:
The HP LaserJet 4L series printer documentation gave a measurement of 3 x 6.75 inches, which was incorrect. The minimum supported paper size is actually 3 x 7.5 inches. The HP LaserJet 4L series printer documentation will be corrected.
Fusing compatibility : Must not scorch, melt, offset material or release hazardous emissions when heated to 392 degrees Fahrenheit (200 degrees Celsius) for 0.1 second.
Finishing (Cutting Dimension Tolerance and Angle) : Cut sheet to within +/- 0.0313 inch (0.79 mm) of nominal, corners 90 deg.+/- 0.2 deg.
Ash Content : Not to exceed 10% or contain large amounts of clay or talc.
Furnish (Composition) : 100% chemical wood pulp and/or cotton fiber.
Special paper
Transparencies Supported
Manual Feed
Label Stock Supported
Manual Feed
Cotton Bond 100% or less
Manual Feed
Supported envelope sizes
Com - 10 (Business)
4.13 x 9.5 inches
Monarch (Letter)
3.88 x 7.5 inches
International DL
110 x 220 mm
C5
162 x 229 mm
Physical specifications
Width
14.5 inches (36.2 cm)
Depth
14.0 inches (35.3 cm)
Depth (with legal paper installed)
16.0 inches (40.2 cm)
Height
6.5 inches (16.4 cm)
Weight (excluding print cartridge)
15.5 lbs. (7 kg)
Toner
The HP LaserJet 4L printer Toner Imaging system uses the HP 92274A Print Cartridge. The Print Cartridge consists of an all-in-one consumable cartridge that prints up to 3,000 pages.
Electrical
C2003A and XXX* Printers (HP LaserJet 4L series printers)
Voltage
100 V or 115 V +/- 10%
220 V to 240 V +/- 10%
Frequencies
50 or 60 Hz +/- 2 Hz
50 Hz +/- 2 Hz
Printing (average)
180 Watts (1.64 Amps), 614 BTU/HR
180 Watts (.82 Amps), 614 BTU/HR (.75 Amps @ 240 V)
Standby (average)
5 Watts (0.04 Amps),17 BTU/HR
5 Watts (0.04 Amps),17 BTU/HR
Peak Current Draw
3.6 Amps for 20 milliseconds
1.8 Amps for 20 milliseconds
* See page 1 for XXX options for the printer.
Environmental
Temperature (Operating)
50 degrees - 91 degrees Fahrenheit (10 degrees - 32.5 degrees C)
Humidity (Operating)
20-80% Relative Humidity
Altitude (Operating)
0-10,000 ft. (0-3,100 m)
Acoustics (Printing Maximum)
5.8 bels
Acoustics (Standby Maximum)
4.8 bels
