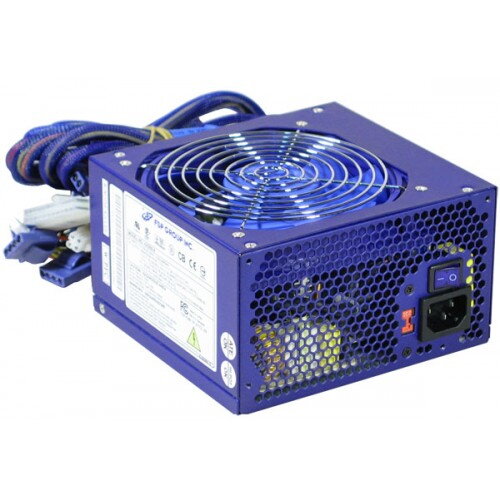

FSP BLUE STORM II 500

GENERAL SPECIFICATIONS:
COOLING Fan(s):
Single, 120mm Riffle-bearing with Thermal Sensor Linked
TOTAL OUTPUT POWER:
500-WATT TOTAL CONTINUOUS OUTPUT @ 30°C
OUTPUT CONNECTORS:
Main 20+4Pin, P4 4-Pin, (6) Molex 4-Pin, (1) FDD, (4) Serial-ATA,
(1) PCI-Express 6-Pin, (1) PCI-Express 6+2 Pin.
NVIDIA SLI SUPPORT
YES
AMD/ATI CROSSFIRE SUPPORT:
YES
80PLUS CERTIFIED:
N/A
MODULAR CABLE:
N/A
SAFETY APPROVAL:
UL, CB, CE, CSA, TÃV, Nemko, FCC, BSMI, C-TICK, GOST
MBTF:
100,000 HOURS @ TYPICAL
INPUT SPECIFICATIONS:
Input Voltage:
115V AC to 230V AC, 47 ~ 63Hz
Power Factor Correction (PFC):
ACTIVE PFC | FULL RANGE
Input Current:
6.0A @ 115 Vrms, 60 Hz.
3.0A @ 230 Vrms, 50 Hz.
Input Protection:
Patented Input Fuse Protection
OUTPUT SPECIFICATIONS:
+12V RAILS:
2
Output Voltage:
+3.3V DC
+5V DC
+12V1 DC
+12V2 DC
-12V DC
+5Vsb DC (Standby)
Output Current:
30.0A @ +3.3V DC
30.0A @ +5V DC
18.0A @ +12V1 DC
18.0A @ +12V2 DC
0.50A @ -12V DC
2.50A @ +5Vsb DC Standby
Output Protection:
Complete OVP, OCP, SCP Protection
