Overview
Check up on your home or business from any PC in the world with Internet access
Keep a record of what happened by digitally recording activity when motion is detected
No monthly service fees —
one time purchase is all you pay
More powerful, configurable and affordable than dedicated quad-screen monitors
Essential Info
It's another busy day at work, and that conference call you're on is showing no signs of letting up. You realize it's already 3 p.m., and you haven't gotten that call from your kids letting you know they arrived home safely. But thanks to this video capture system, you can pull up your four-camera video surveillance system on your work computer and see your 12-year-old watching TV in the family room, while your 14-year-old is in the back yard skateboarding on the ramp he built — all without missing a word of your conference call! You can even have your home computer digitally record video footage when it detects motion, so if your kids were Internet chatting in the home office before they finished their homework, you'll have the evidence.
You can do all that and more with this state-of-the-art Four-Port Video Capture System that lets you remotely view up to four cameras in your home or business from anywhere in the world where you can get access to a LAN or a TCP/IP connection. This remarkable system works with your existing PC, eliminating the expense of investing in a dedicated security monitor, quad processor and time-lapse VCR! And unlike competing systems, this one works with any surveillance cameras, without any subscription fees apart from the broadband Internet service that you probably already have.
The system works by taking the baseband video signals from up to four color or black white cameras, and outputting them to your Windows®-based PC. Images are shown in a quad display, so you can see all four cameras simultaneously. If you do want a record of what happened, you can configure your hard drive to begin recording images when motion is sensed on the video image, or at specific intervals. You'll be able to define any area of the screen to monitor for motion, even with non-standard shapes. The moment motion is detected within that area, the PC will immediately begin digitally recording. Plus, at a compression rate up to 300:1, you can save only critical moments, without being stuck with gigabytes of useless data, or without having to scan through hours of videotape. The video source (brightness, contrast, etc.), preview size, image quality and compression ratio are fully adjustable.

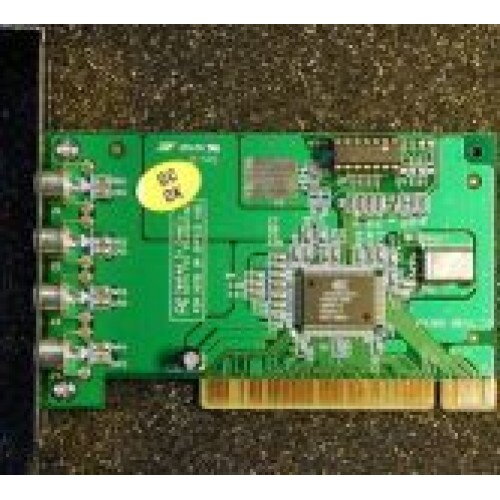

Designed to snap into the PCI slot of any Pentium II or better computer, the video capture card is built with four composite video input connectors. It fully supports NTSC and PAL video formats. Includes a CD-ROM containing the drivers for the capture card, server software for only Windows® 98, and remote viewing software for Windows® 98/2000/NT.
Specifications
Computer interface
PCI 2.1
Inputs
4 composite video input connectors
Video Compression
Microsoft Video Compression, up to 300:1
Hard Drive
Space
Unlimited
system can delete earlier file if running low
Camera
Frame
Rate
Server: 15/N fps
(N=the Number of video signal source)
Remote: 5~15fps(10-Base LAN)
Remote viewing
TCP/IP protocol (Internet/Intranet)
Adjustments
Brightness, contrast, Hue, Saturation,
quality, alarm, motion detection area
Video Chip
Bt878
Formats supported
NTSC-M (North America), NTSC-Japan
PAL, SECAM
System Requirements
CPU
Pentium 3 or 4. May not work with Celeron or AMD processors
Operating System
For #7789
Microsoft Windows98 for the Server PC
For 7782B04, 7782B09 or 7782B16
Windows 2000 or XP
Windows 98, 2000, NT for the Remote PC
Audio
Sound card
Network
Ethernet network card or Modem
Hard disk space
Hard disk space
RAM Memory
64 MB or above
Display card
16 bit high color or 24-bit true color
Check up on your home or business from any PC in the world with Internet access
Keep a record of what happened by digitally recording activity when motion is detected
No monthly service fees —
one time purchase is all you pay
More powerful, configurable and affordable than dedicated quad-screen monitors
Essential Info
It's another busy day at work, and that conference call you're on is showing no signs of letting up. You realize it's already 3 p.m., and you haven't gotten that call from your kids letting you know they arrived home safely. But thanks to this video capture system, you can pull up your four-camera video surveillance system on your work computer and see your 12-year-old watching TV in the family room, while your 14-year-old is in the back yard skateboarding on the ramp he built — all without missing a word of your conference call! You can even have your home computer digitally record video footage when it detects motion, so if your kids were Internet chatting in the home office before they finished their homework, you'll have the evidence.
You can do all that and more with this state-of-the-art Four-Port Video Capture System that lets you remotely view up to four cameras in your home or business from anywhere in the world where you can get access to a LAN or a TCP/IP connection. This remarkable system works with your existing PC, eliminating the expense of investing in a dedicated security monitor, quad processor and time-lapse VCR! And unlike competing systems, this one works with any surveillance cameras, without any subscription fees apart from the broadband Internet service that you probably already have.
The system works by taking the baseband video signals from up to four color or black white cameras, and outputting them to your Windows®-based PC. Images are shown in a quad display, so you can see all four cameras simultaneously. If you do want a record of what happened, you can configure your hard drive to begin recording images when motion is sensed on the video image, or at specific intervals. You'll be able to define any area of the screen to monitor for motion, even with non-standard shapes. The moment motion is detected within that area, the PC will immediately begin digitally recording. Plus, at a compression rate up to 300:1, you can save only critical moments, without being stuck with gigabytes of useless data, or without having to scan through hours of videotape. The video source (brightness, contrast, etc.), preview size, image quality and compression ratio are fully adjustable.
Designed to snap into the PCI slot of any Pentium II or better computer, the video capture card is built with four composite video input connectors. It fully supports NTSC and PAL video formats. Includes a CD-ROM containing the drivers for the capture card, server software for only Windows® 98, and remote viewing software for Windows® 98/2000/NT.
Specifications
Computer interface
PCI 2.1
Inputs
4 composite video input connectors
Video Compression
Microsoft Video Compression, up to 300:1
Hard Drive
Space
Unlimited
system can delete earlier file if running low
Camera
Frame
Rate
Server: 15/N fps
(N=the Number of video signal source)
Remote: 5~15fps(10-Base LAN)
Remote viewing
TCP/IP protocol (Internet/Intranet)
Adjustments
Brightness, contrast, Hue, Saturation,
quality, alarm, motion detection area
Video Chip
Bt878
Formats supported
NTSC-M (North America), NTSC-Japan
PAL, SECAM
System Requirements
CPU
Pentium 3 or 4. May not work with Celeron or AMD processors
Operating System
For #7789
Microsoft Windows98 for the Server PC
For 7782B04, 7782B09 or 7782B16
Windows 2000 or XP
Windows 98, 2000, NT for the Remote PC
Audio
Sound card
Network
Ethernet network card or Modem
Hard disk space
Hard disk space
RAM Memory
64 MB or above
Display card
16 bit high color or 24-bit true color
