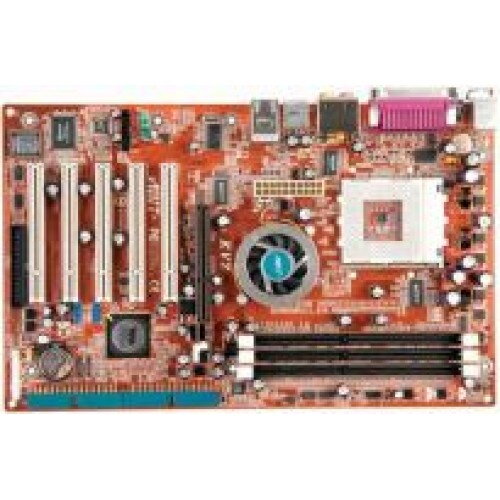

ABIT KV7

Specifications


CPU
Supports AMD-K7 Athlon/ AthlonXP/ Barton FSB 200/266/333/400MHz Processors
Supports AMD Sempron CPUs (Please update the latest BIOS version)


Chipset
VIA KT600 / VT8237 chipset
Supports Hi-Speed Universal Serial Bus (USB 2.0)
Supports Advanced Configuration and Power Management Interface (ACPI)
Accelerated Graphics Port connector supports AGP 8X /4X (0.8V /1.5V)


Memory
Three 184-pin DIMM sockets
Supports 2 DIMM Un-buffered DDR 333/400 (Max. 2GB)
Supports 3 DIMM Un-buffered DDR 266 (Max. 3GB)


SATA RAID
SB supports 2 ports SATA 150 RAID 0/1


Audio
6-Channel AC 97 CODEC on board
Professional digital audio interface supports optical S/P DIF Out


LAN
On board 10/100Mb LAN


ABIT Engineered
SoftMenu™ Technology to set CPU parameters
ABIT FanEQ™ Technology
ABIT MaxFID™ Technology
CPU ThermalGuard Technology
TweakGuard Technology


Internal I/O Connectors
1 x AGP, 5 x PCI slots
Floppy Port supports up to 2.88MB
2 x Ultra DMA 33/66/100/133 Connectors,
2 x SATA 150 RAID Connectors
2 x USB headers, 1 x CD-IN, 1 x AUX-IN


Back Panel I/O
1 x PS/2 Keyboard, 1 x PS/2 mouse
1 x Serial, 1 x Parallel
Audio connectors (Front Speaker, Line-in, Mic-in, Center/Sub, Surround Speaker, S/P DIF Output)
4 x USB, 1 x RJ-45 LAN Connector


Miscellaneous
ATX form factor
Hardware Monitoring – Including Fan speed, Voltages, CPU and System temperature
