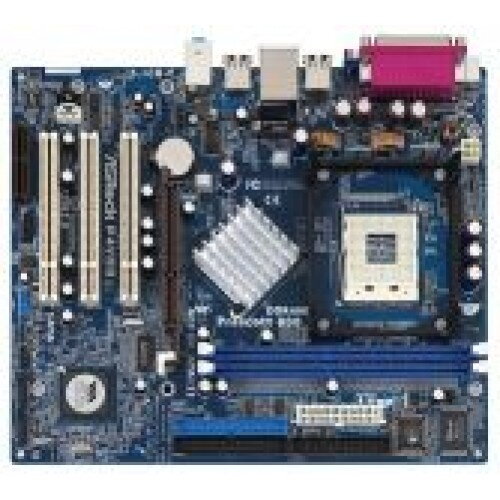

ASRock P4VM8 socket 478 základná doska

General
CPU
- Socket 478 for Intel® Pentium 4/Celeron processor

- FSB 800/533/400 MHz

- Supports Hyper-Threading Technology

- Prescott support
Chipset
- Northbridge: VIA® PM800

- Southbridge: VIA® 8237
Memory
- Supports DDR400/333 non-ECC, un-buffered memory

- DIMM slots: 2

- Max. capacity of system memory: 2GB
BIOS
- 4Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
Audio, Video and Networking
Graphics
- Integrated UniChrome Pro 3D Graphics in VIA® PM800 chipset

- Shared Memory Max. 64MB (with the pre-condition of at least 256MB system memory)
Audio
- CMedia CMI9761 6 channel AC'97 audio codec
LAN
- VIA® 6103 10/100 Ethernet LAN PHY

- 802.3u, WOL supported
Expansion / Connectivity
Slots
- 1 x AGP8X/4X slot, 1.5V

- 3 x PCI slots( PCI 2.2 compliance)

- 1 x AMR slot
Connector
- 2 x SeialATA 1.5Gb/s connectors supports RAID,0,1,JBOD, SATA HDD_Hotplug

- 2 x ATA 133/100/66 IDE connectors ( supports 4 x IDE devices)

- 1 x Floppy connector

- CPU/Chassis FAN connectors

- 20 pin ATX power connector

- 4 pin 12V power connector

- IDE LED connector

- CD/AUX audio in header

- Front panel audio connector

- 1 x USB 2.0 port pin header

- 1 x COM port pin header
Rear Panel I/O
ASRock I/O Plus

- 6 x USB2.0 ports

- 1 x RJ45 LAN port

- 1 x VGA port

- 1 x PS2 Keyboard connector

- 1 x PS2 Mouse connectors

- 1 x Parallel port (LPT1)

- 1 x Audio ports ( Line In/Out, Mic In)
Other Features / Miscellaneous
Unique Feature
Hybrid Booster:

- CPU Frequency Stepless control

- ASRock U-COP

- Boot Failure Guard (B.F.G)
Support CD
- Drivers, Utilities, Anti Virus Software,ASRock PC DIY Demo

- SATA driver and utility
Accessories
- Quick Installation Guide, Support CD, I/O shield

- Floppy/ATA 133 Cables

- 1 x SATA Data Cable

- 1 x SATA 1-to-1 Power Cable

- 1 x COM Port Bracket
Form Factor
- MicroATX, 244mm x 203mm
OS
- Microsoft® Windows® 98SE/ME/2000/XP compliant
Certifications
- FCC, CE, MS WHQL
