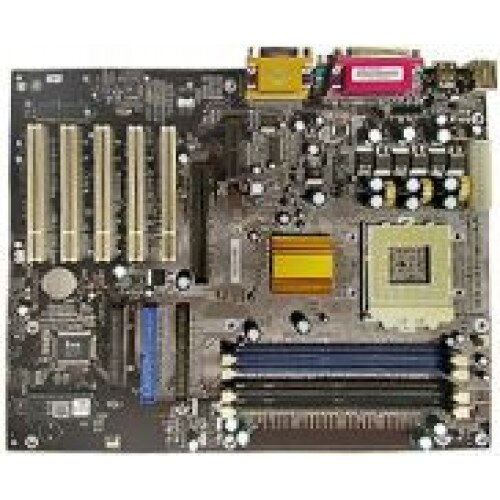

Mercury KOB 735 FSX AMD K7 Socket A mainboard

KOB 735 FSX
Specifications
Description
- AMD Athlon (K7) Mainboard with SIS 735 Chipset Design
Processors
- 462 pin Socket A supports AMD Athlon (K7) processors

- Full series of Athlon/Duron CPU including the future Athlon processors
Chipset
- SiS 735 System Chipset

- Super I/O and LPC ?ITE8705F

- System Hardware Monitor: Built-in ITE 8705

- LAN: MAC integrated in SiS735+PHY on board

- AC97 Audio Codec
System BIOS
- AMI 2Mb Flash EEPROM

- Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

- Support for ACPI revision 1.0 specification
Memory
- 2 DDR DIMM Sockets and 2 DIMM sockets support(cannot be used simultaneously)

- Two 184-pin DDR SDRAM (DDR266/DDR200) or

- Two 168-pin 3.3V SDRAM (PC100/PC133)

- Maximum: 1GB (DDR or SDRAM)
I/O Interface
- Supports Plug and Play function

- PS/2 keyboard and PS/2 mouse connectors

- Dual USB ports and LAN connector

- One - EPP/ECP mode parallel port

- Two - 16550 high-speed serial I/O port

- Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)

- Dual PCI IDE interfaces - support four IDE

devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66/100)

- Supports 360K~2.88M Byte, 3 Mode FDDs or LS120

- ATX Power Supply Connector

- Ports, headers and others

* IrDA Cable header

* Extra USB header

* Two CD-In headers

* Front Panel MIC/Line-Out header

* Green, HDD, power indicator LED headers

* CPU and Case Fan headers

* Modem Ring Wake Up Header
RTC amp; Battery
- SiS 735 built-in 256 byte of CMOS SRAM

- With CMOS SRAM hardware clear jumper
Expansion Slots
- 5 PCI slots, 1 4XAGP slot, 1 AMR slot
Form Factor amp; Layers
- ATX (304mm x 244mm), 4 Layers
