Popis

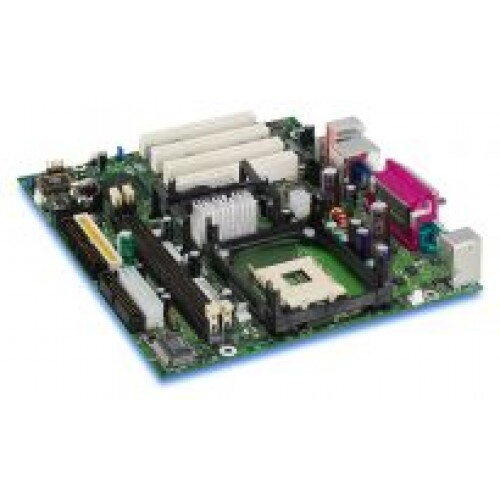

Product Type Motherboard
Form Factor Micro ATX
Width 9.2 in
Depth 8.2 in
Compatible Processors Pentium 4 , Celeron
Processor Socket Socket 478
Supported Processor Packaging FC-PGA2
Max Processor Speed 2.4 GHz
Chipset Type Intel 845GL
Max Bus Speed 400.0 MHz
BIOS Type AMI
Storage Controller ATA-100
Processor
Installed Qty (Max Supported) 0.0 ( 1.0 )
Memory
Cache Memory Type None
Supported RAM Technology DDR SDRAM
Supported RAM Integrity Check Non-ECC
Supported RAM (Registered or Buffered) Unbuffered
RAM Installed ( Max ) 0.0 MB / 2.0 GB (max) - DIMM 184-pin
RAM Technology DDR SDRAM - Non-ECC
Supported RAM Speed DDR266/PC2100 , PC1600
Video
Graphics Controller Intel Extreme Graphics Shared video memory (UMA)
Audio
Audio Output Sound card - PCI
Signal Processor Intel 845GL
Sound Output Mode Stereo - 16-bit
Max Sample Rate 48.0 KHz
Compliant Standards AC '97 , SoundMAX with SPX
Telecom / Networking
Modem None
Networking None
Features
BIOS Features WfM 2.0 support , ACPI support , DMI 2.0 support , Rapid BIOS boot
Sleep / Wake Up Mouse wake up , Keyboard wake up , Wake on PCI device , Wake on USB port , Suspend to RAM (STR)
Hardware Features Chassis intrusion detection
Expansion / Connectivity
Expansion Slots Total (Free) 4.0 ( 4.0 ) x Processor ( 2.5 V ) - DIMM 184-pin , 1.0 ( 1.0 ) x Memory - Socket 478 , 2.0 ( 2.0 ) x PCI
Storage Interfaces ATA-100 - connector(s): 2 x 40pin IDC
Interfaces 1.0 x Audio - Line-in - Mini-phone stereo 3.5 mm , 1.0 x Audio - Line-in - 25 pin D-Sub (DB-25) , 1.0 x Keyboard - Floppy interface - Mini-phone mono 3.5 mm , 1.0 x Audio - Line-out/headphones - 6 pin mini-DIN (PS/2 style) , 1.0 x Storage - Auxiliary - 4 pin MPC , 1.0 x Microphone - Generic - 6 pin mini-DIN (PS/2 style) , 1.0 x Serial - Input - Mini-phone stereo 3.5 mm , 1.0 x Audio - Generic - 4 pin MPC , 2.0 x Mouse - RS-232C - 34 pin IDC , 1.0 x Hi-Speed USB - IEEE 1284 (EPP/ECP) - 9 pin D-Sub (DB-9) , 1.0 x Parallel - 4 pin USB Type A
Compatible Slots None
Miscellaneous
Cables Included Floppy cable , IDE cable
Software Included Drivers utilities
Compliant Standards IC Class B , VCCI , UL , CSA , FCC Class B certified , Plug and Play , ACPI 1.0b
Form Factor Micro ATX
Width 9.2 in
Depth 8.2 in
Compatible Processors Pentium 4 , Celeron
Processor Socket Socket 478
Supported Processor Packaging FC-PGA2
Max Processor Speed 2.4 GHz
Chipset Type Intel 845GL
Max Bus Speed 400.0 MHz
BIOS Type AMI
Storage Controller ATA-100
Processor
Installed Qty (Max Supported) 0.0 ( 1.0 )
Memory
Cache Memory Type None
Supported RAM Technology DDR SDRAM
Supported RAM Integrity Check Non-ECC
Supported RAM (Registered or Buffered) Unbuffered
RAM Installed ( Max ) 0.0 MB / 2.0 GB (max) - DIMM 184-pin
RAM Technology DDR SDRAM - Non-ECC
Supported RAM Speed DDR266/PC2100 , PC1600
Video
Graphics Controller Intel Extreme Graphics Shared video memory (UMA)
Audio
Audio Output Sound card - PCI
Signal Processor Intel 845GL
Sound Output Mode Stereo - 16-bit
Max Sample Rate 48.0 KHz
Compliant Standards AC '97 , SoundMAX with SPX
Telecom / Networking
Modem None
Networking None
Features
BIOS Features WfM 2.0 support , ACPI support , DMI 2.0 support , Rapid BIOS boot
Sleep / Wake Up Mouse wake up , Keyboard wake up , Wake on PCI device , Wake on USB port , Suspend to RAM (STR)
Hardware Features Chassis intrusion detection
Expansion / Connectivity
Expansion Slots Total (Free) 4.0 ( 4.0 ) x Processor ( 2.5 V ) - DIMM 184-pin , 1.0 ( 1.0 ) x Memory - Socket 478 , 2.0 ( 2.0 ) x PCI
Storage Interfaces ATA-100 - connector(s): 2 x 40pin IDC
Interfaces 1.0 x Audio - Line-in - Mini-phone stereo 3.5 mm , 1.0 x Audio - Line-in - 25 pin D-Sub (DB-25) , 1.0 x Keyboard - Floppy interface - Mini-phone mono 3.5 mm , 1.0 x Audio - Line-out/headphones - 6 pin mini-DIN (PS/2 style) , 1.0 x Storage - Auxiliary - 4 pin MPC , 1.0 x Microphone - Generic - 6 pin mini-DIN (PS/2 style) , 1.0 x Serial - Input - Mini-phone stereo 3.5 mm , 1.0 x Audio - Generic - 4 pin MPC , 2.0 x Mouse - RS-232C - 34 pin IDC , 1.0 x Hi-Speed USB - IEEE 1284 (EPP/ECP) - 9 pin D-Sub (DB-9) , 1.0 x Parallel - 4 pin USB Type A
Compatible Slots None
Miscellaneous
Cables Included Floppy cable , IDE cable
Software Included Drivers utilities
Compliant Standards IC Class B , VCCI , UL , CSA , FCC Class B certified , Plug and Play , ACPI 1.0b
