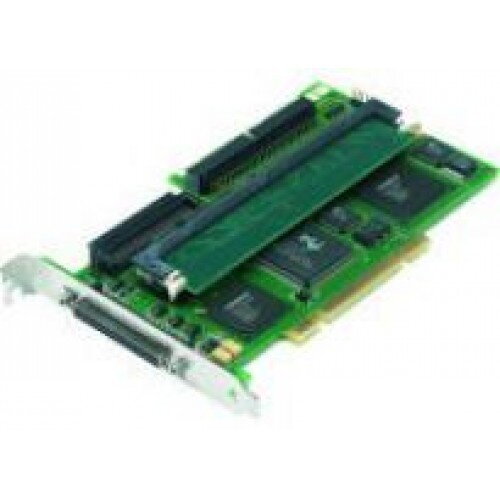

Adaptec AAA-131U2 / 2MB
Customer Needs
Ideal for users who require maximum system availability, performance, and scalability
System Environment
Entry-level SCSI servers and workstations
Cache Memory
2 MByte (upgradable to 64 MB)
Bus System Interface Type
32-bit PCI
External Connectors
One 68-pin, LVD
Internal Connectors
One 68-pin, LVDOne 50-pin
System Requirements
Intel PC or equivalent with available PCI slot
Package Contents
AAA-131U2 single-channel Ultra2 SCSI RAID card Adaptec CI/O Management software Array1000U2 Family Manager Set software AAA-131U2 user documentation set One internal 5-position Ultra2 SCSI cables with active termination
Warranty
Description
Single-channel Ultra2 SCSI RAID card with expandable cache memory
Data transfer Rate
Up to 80 MByte/sec
RAID Levels
RAID 0, 1, 0/1, 5
Board Dimensions
Half-size PCI card
(6.93 x 4.2 inches, 17.526 x 10.668 cm)
Power Consumption
5V: 4 A max.
Operating Characteristics
32 F to 131 F (0°C to 55°C)
Customer Needs
Ideal for users who require maximum system availability, performance, and scalability
System Environment
Entry-level SCSI servers and workstations
Cache Memory
2 MByte (upgradable to 64 MB)
Bus System Interface Type
32-bit PCI
External Connectors
One 68-pin, LVD
Internal Connectors
One 68-pin, LVDOne 50-pin
System Requirements
Intel PC or equivalent with available PCI slot
Package Contents
AAA-131U2 single-channel Ultra2 SCSI RAID card Adaptec CI/O Management software Array1000U2 Family Manager Set software AAA-131U2 user documentation set One internal 5-position Ultra2 SCSI cables with active termination
Warranty
Description
Single-channel Ultra2 SCSI RAID card with expandable cache memory
Data transfer Rate
Up to 80 MByte/sec
RAID Levels
RAID 0, 1, 0/1, 5
Board Dimensions
Half-size PCI card
(6.93 x 4.2 inches, 17.526 x 10.668 cm)
Power Consumption
5V: 4 A max.
Operating Characteristics
32 F to 131 F (0°C to 55°C)
