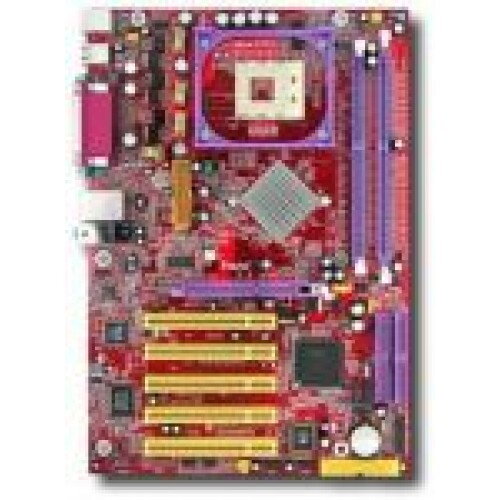

SOLTEK 86SPE2-L

Chipset Intel 865PE + ICH5

Processor Socket 478 on board.

Supporting P4 CPU

(including Prescott CPU and Hyper Threading Technology).



Front Side Bus 800/533/400MHz Front Side Bus.

Memory 2 x 184-pin DDR DIMM Sockets.



Supporting unregistered non-ECC DDR 400/333/266 DRAM up to 2GB.



Supporting Dual-Channel.



Expansion Slots 1 x AGP 8X/4X Slot.



5 x PCI Slots.



On-Board EIDE 2 x ATA100/66/33 IDE connectors supporting up to 4 IDE devices.

On-Board SATA 2 x Serial ATA connectors supporting 2 Serial ATA HDDs. (by ICH5)



Integrated Super I/O 1 x Floppy Port.



1 x PS/2 Mouse Port.



1 x PS/2 Keyboard Port.



1 x LAN Port. (For SL-86SPE2-L only)



1 x Parallel Port.



2 x Serial Ports.



8 x USB 2.0/1.1 Ports. (4 integrated, 4 via optional cables)



Audio Ports.



RAID --

IEEE1394 --

Audio 6-Channel AC'97 Audio.

LAN 10/100 LAN Function. (For SL-86SPE2-L only)

BIOS AMI BIOS.



Flash Memory for easy upgrade.



Form Factor ATX Form Factor (305mm x 210mm)

Other Features BIOS FSB Setting.



BIOS Writing Protection.



BIOS AGP, DIMM, Vcore Voltage Setting.



BIOS Multiplier Setting.



SmartDoc. Anti-burning Shield. (optional)



RedStorm Overclocking Technology. (optional)



H/M Monitor.



STR Function. (optional)
