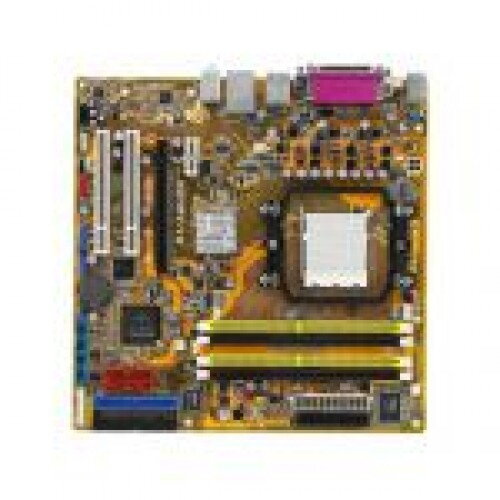

ASUS M2NPV-VM AM2 NVIDIA GeForce 6150 Micro ATX

CPU
Support AMD® Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron

AMD Cool 'n' Quiet™ Technology

AMD64 architecture enables simultaneous 32-bit and 64-bit computing

AMD Live!™ Ready
Chipset
NVIDIA GeForce 6150 + nForce 430
Front Side Bus
2000 / 1600 MT/s
Memory
Dual channel memory architecture

4 x 240-pin DIMM, support max. 8GB DDR2 800/667/533 ECC and non-ECC,un-buffered memory
VGA
Integrated GeForce 6 GPU

High Definition Video Processing with max. resolutions to 1920 x 1440 (@ 75Hz)
Dual VGA output support: DVI-D and RGB

Note: DVI-D can not be converted to output RGB signal to CRT.
TV-out support: SDTV amp; HDTV (bundles HDTV/AV/S output module)

Note: RGB and TV-Out can not be used simultaneously.
Expansion Slots
1 x PCI Express x16

1 x PCI Express x1

2 x PCI
Storage/RAID
South bridge: NVIDIA nForce 430

*2 x UltraDMA 133/100/66/33

*4 x Serial ATA 3Gb/s with RAID 0, RAID 1, RAID 0+1, RAID 5 amp; JBOD

NVIDIA MediaShield™ RAID 0, 1, 0+1, 5 and JBOD span cross Serial ATA drives
LAN
NVIDIA nForce® 430 built-in Gigabit MAC with external Marvell PHY
Audio
ADI AD1986A High Difinition Audio 5.1channel CODEC

Support Jack-Sensing and S/PDIF out interface
IEEE 1394
TI IEEE 1394a controller supports 2 x 1394a ports
USB
Up to 8 USB2.0/1.1 ports
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR, PXE, Chassis Intrusion
BIOS
4Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0
Overclocking Features
SFS (Stepless Frequency Selection) from 200MHz to 400MHz at 1MHz increment

ASUS O.C. Profile: overclocking configuration-sharing tool

Overclocking Protection:

ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS Q-Fan 2

ASUS My Logo

ASUS CrashFreeBIOS2

ASUS EZ Flash 2

Note: CrashFree BIOS2 and EZ Flash 2 only support VGA/RGB output, but does not support VGA/DVI-D output.
Back Panel I/O Ports
1 x DVI-D out

1 x D-Sub out

4 x USB 2.0 ports

1 x IEEE 1394a port

1 x 5.1 channel Audio I/O

1 x RJ45

1 x PS/2 Mouse

1 x PS/2 Keyboard

1 x Parallel
Internal I/O Connectors
2 x USB 2.0 connector supports additional 4 USB 2.0 ports

1 x IEEE 1394a connector

1 x TV out connector

1 x Game/MIDI connector

1 x S/PDIF output connector

High Definition Front panel audio connector

4-pin CPU Fan / 2*Chassis Fan connectors

Chassis Intrusion connector

CD audio-in connector

24-pin ATX power connector

4-pin ATX 12V Power connector

2 x COM connectors
O/S Compatibility
Windows Vista/XP/2000
Support Disc
Drivers

NVIDIA MediaShield™ RAID

ASUS PC Probe II

ASUS LiveUpdate Utility

AMD Cool ' n' Quiet Utility

Anti-virus software (OEM version)
Accessories
2 x Serial ATA cables

1 x SATA power cable for two devices

1 x IDE cable

1 x UltraDMA 133/100/66 cable

1 x FDD cable

1 x IEEE 1394 cable

1 x I/O Shield

HDTV/AV/AS output module

User's manual
Form Factor
uATX Form Factor, 9.6" x 9.6" (24.5cm x 24.5cm)
