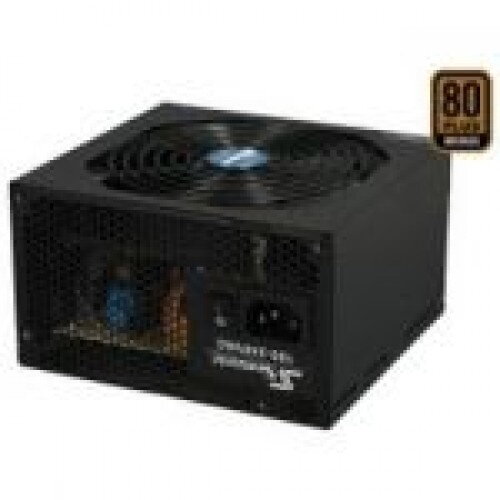

SeaSonic S12 II SS-500GB 500W ATX

Model
Brand
SeaSonic
Model
SS-500GB
Series
S12 II
Spec
Type
ATX12V V2.3 / EPS12V V2.91
Maximum Power
500W
Fans
12cm Double Ball Bearing Cooling Fan
PFC
Active
Main Connector
20+4Pin
+12V Rails
2
PCI-Express Connector
1 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector
6
SLI
Ready
CrossFire
Ready
Modular
No
Efficiency
up to 85%
Energy-Efficient
80 PLUS Certified
Over Voltage Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Input Current
9A
Output
+3.3V@24A,+5V@24A,+12V1@17A,+12V2@17A,

-12V@0.8A,+5VSB@2.5A
MTBF
100,000 hours at 25°C under full load
Approvals
UL, CE, CB, TUV, FCC
Features
Connectors
1 x Main Connector (20+4Pin)

1 x 12V (P4)

1 x 12V (8Pin)

9 x peripheral

6 x SATA

2 x Floppy

2 x PCI-E (1 x 6Pin, 1 x 6+2Pin)
Features
Conductive Solid Capacitor on the critical +12V rails

Multiple +12V Outputs

All in One DC Cabling Design

PCI-E video card support

Active PFC [99% PF Value]

Smart amp; Silent Fan Control (S2FC)

Ultra Ventilation [Honey Comb Structure]

Easy Swap Connector

12cm Ball Bearing Cooling Fan

Soft-Mounting Rubber Cushions

Universal AC Input [Full Range]
