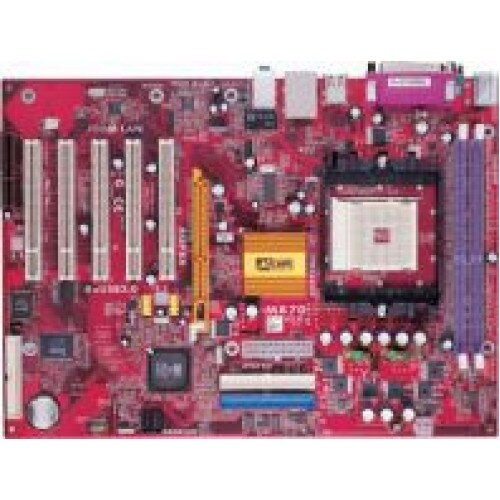

PCCHIPS M870 (V2.0) Socket 754 and FSB800/DDR400 Motherboard

CPU
Socket 754 for AMD Athlon 64 / Sempron processor
FSB
800 MHz
Chipset
SiS 755/964
Memory
2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400/333/266)
Maximum: 2GB
Expansion Slots
1 x AGP 8X
5 x PCI
1 x CNR slot
LAN
Realtek RTL8201BL 10/100Mbps Fast Ethernet PHY
Audio
Realtek ALC655 6-channel audio codec
Compliant with AC'97 2.3 specification
IDE
2 x UltraDMA 133/100/66
Back Panel I/O Ports
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Parallel Port
1 x Serial Port
4 x USB 2.0 Ports
1 x RJ 45 Port
1 x Audio I/O (Line-in, Line-out and Mic-in)
Internal I/O Connectors amp; Headers
20-pin ATX power supply connector
4-pin ATX 12V power supply connector
2 x USB 2.0 header support additional 4 USB2.0 ports
2 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
CPU / CAS FAN headers
1 x IrDA for SIR header
1 x Speaker header
1 x CD in/AUX in header
1 x Floppy connector-support 360K~2.88MB FDDs
System BIOS
Award 2Mb Flash ROM
Supports Plug and Play 1.0B, APM 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification
Form Factor
ATX Form Factor, 305*220mm
