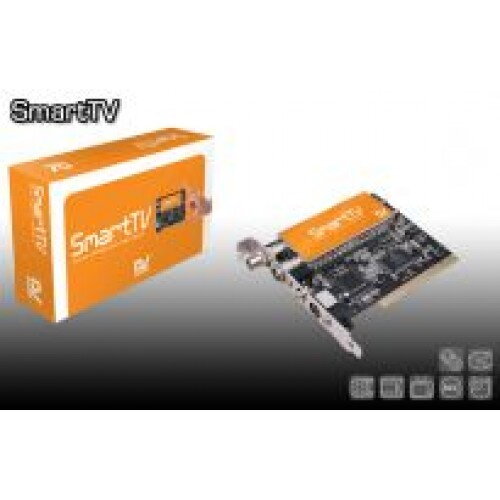

InnoDV SmartTV

bez diaľkového ovládania

Features
Built-in TV and FM Radio Tuner
Multiple TV channels preview
Volume, Brightness, Contrast, Saturation and Hue adjustment
Still image snapshot
Scheduled recording
Time Shifting mode supported â record amp; playback TV program at the same time
High resolution and real time recording in MPEG 1 amp; 2 digital video format
Analog video capture from s-video and composite video input
Product Specifications
Hardware Interface
PCI Version 2.1 Compliant
Video Standards
NTSC and PAL
TV Standards
NTSC, PAL I/DK, PAL BG/DK or PAL M/N
FM Tuner
88MHz~ 108MHz

76MHz~91MHz (For Japan only)
Video In
Anlogue Video - TV Antenna, S-Video and Composite Input
Video Capture Resolution
DVD: 720x480-NTSC, 720x576-PAL

MPEG-2:

720x480 / 640x480 / 480x480 / 352x240 â NTSC

720x576 / 640x576 / 480x576 / 352x288 â PAL

SVCD: 480x480-NTSC, 480x576-PAL

VCD: 352x240-NTSC, 352x288-PAL

MPEG-1: 352x240-NTSC, 352x288-PAL
Video Recording Format
MPEG-1 / MPEG-2 / VCD / SVCD / DVD
Input Connectors
TV Antenna Input

FM Radio Input

Mini DIN 4-pin S-Video Input

Composite Video Input

Stereo Audio Input (3.5mm Phone Jack)

Remote Control Receiver
Output Connector
Stereo Audio output (3.5mm Phone Jack)

System Requirements
Intel® Pentium® II 350MHz, AMD equivalent or above

MPEG-1 VCD (325x240) capture - Intel® Pentium® III 350MHz or faste

MPEG-2 DVD (640x480) capture - Intel® Pentium® III 650MHz or faster

One available PCI bus rev 2.1 compliant slot

64MB(128MB recommended) of system memory

Microsoft® Windows® 98SE / ME / 2000 / XP

Graphics Card with Microsoft® DirectX® 8 or higher support

16-bit PCI Sound card for audio playback and recording

Speaker for audio output

CDROM drive for software installation
