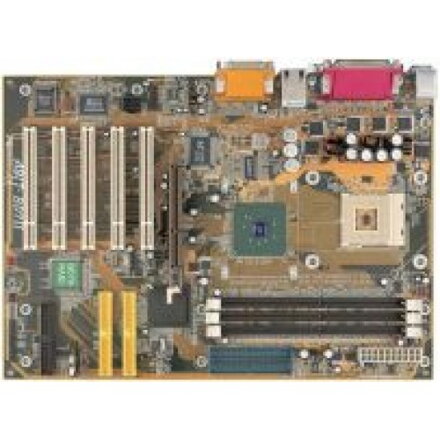

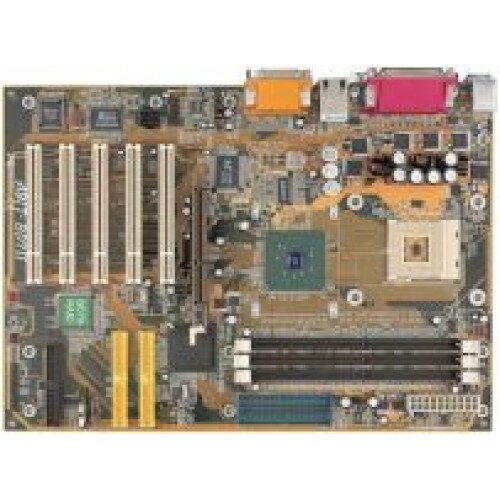

ABIT BD7II-RAID

Specifications
CPU

Supports Intel Pentium® 4 Socket478 processor

400/533MHz System Data Bus

Chipset

Intel 845E (ICH4) chipset

Supports AGP 4X 1.5V device only

Supports Hi-Speed Universal Serial Bus (USB v2.0)

Supports Dual Ultra ATA 100/66/33 channels supporting 4 devices

Ultra DMA 133/RAID

High Point HPT372 IDE Controller

Ultra DMA 133MB/sec data transfer rate

RAID0 (Stripping mode for boosting performance)

RAID1 (Mirroring mode for data security)

RAID 0+1 (Stripping and Mirroring)

Memory

Supports Three 184 pin DDR DIMM module

Supports up to 2GB MAX

Supports PC1600 and PC2100

Audio

AC'97 6-ch Audio CODEC on board

System BIOS

ABIT SoftMenu Technology

Award Plug and Play BIOS supports APM and ACPI

Write-Protect Anti-Virus function by AWARD BIOS

Multi I/O Functions

2 Channels Bus Master IDE Ports support Ultra DMA 33/66/100

2 Channels Bus Master IDE Ports support Ultra DMA 33/66/100/133 for RAID 0/1/0+1

PS/2 Keyboard and PS/2 Mouse Connectors

1 Floppy Port (up to 2.88MB)

1 Parallel Port (EPP/ECP)

2 Serials Ports

2 USB 2.0 Connectors

Audio connector (Line-in, Line-out, MIC-in, and Game Port )

LAN

On board RTL8100B single chip Ethernet controller with power management

10/100Mb Operation

Supports ACPI amp; Wake on LAN

Supports Full Duplex Flow Control (IEEE 802.3x) and compliant to PCI Revision 2.2
