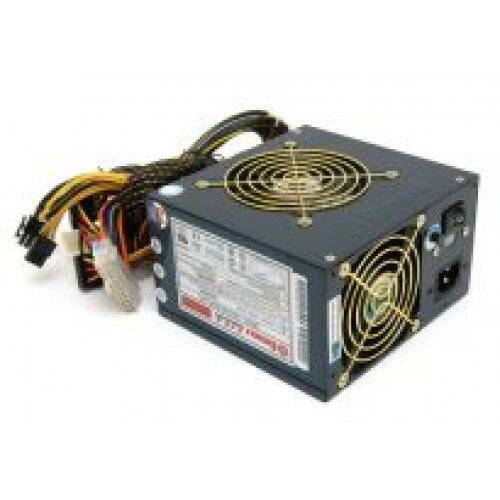

Enermax Noisetaker EG701AX-VE SFMA(24P) 600W EPS12V SLI Certified CrossFire Ready Active PFC Power Supply

Model
Brand
ENERMAX
Model
EG701AX-VE SFMA(24P)
Series
Noisetaker
Spec
Type
EPS12V
Maximum Power
600W
Fans
2
PFC
Active
Main Connector
20+4Pin
+12V Rails
2
PCI-Express Connector
2 x 6-Pin
SLI
Certified
CrossFire
Ready
Modular
No
Hold-up Time
17ms at 115VAC or 230VAC, full load
Efficiency
80%
Over Voltage Protection
+5V: 5.5V~7.0V +3.3V: 3.76V~4.3V +12V1 amp; +12V2: 13.4V~15.6V
Overload Protection
110~160% of max load
Input Voltage
90~265V(Adjusted Automatically)
Input Frequency Range
47 - 63 Hz
Input Current
9.5~4A
Output
+3.3V@36A, +5V@45A, +12V1@18A, +12V2@18A, -12V@0.8A, +5VSB@2.5A
MTBF
Greater than 100K hours at 70% of full rated load; 230VAC / 50Hz input; 25°C ambient
Approvals
UL (Level 3), cUL (Level 3), VDE, CB, NEMKO, SEMKO, DEMKO, FIMKO
Features
Connectors
1 x Main connector (20+4Pin)

1 x 12V(8Pin)

7 x peripheral

4 x SATA

2 x Floppy

2 x PCI-E
Features
smart fan function

ring core technology
