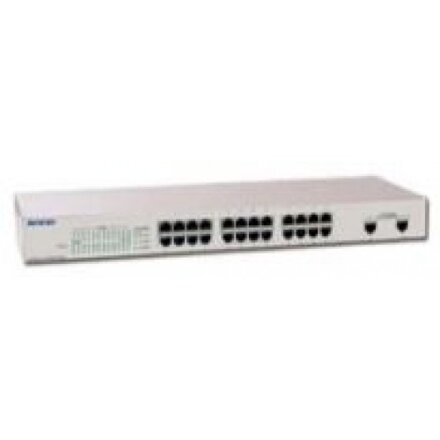

REPOTEC RP-G3224E 24-port N-way RJ45 10/100Mbps + 2-port RJ45 10/100/1000 Gigabit Smart Switch w/ Full/Half duplex capability, 1U 19 rackmountable

The device provides smart and efficient management functions and support 26 ports connection with 24 ports of 10/100Mbps and 2 ports 10/100/1000Mbps with Full/Half duplex capability.

Store-and-forward switching mode promises the low latency plus eliminates all the network errors, including runt and CRC error packets. To work under full-duplex mode, transmission and reception of the frames can occur simultaneously without causing collisions as well as double the network bandwidth. The switch is plug-n-play without any software to configure and also fully compliant with all kinds of network protocols.



◎ 24 10/100Mbps Auto-negotiation Ethernet ports

◎ 2 10/100/1000Mbps Auto-negotiation Gigabit Ethernet ports

◎ Auto MDI-X for each TX port

◎ Wire speed reception and transmission

◎ Store-and-Forward switching method

◎ Support Full/Half duplex transfer mode for 10/100Mbps

◎ Support Full duplex transfer mode for 1000Mbps

◎ Supports 8K MAC addresses

◎ Supports 2.5Mbit RAM for data buffering

◎ Extensive front-panel diagnostic LEDs

◎ IEEE 802.3x flow control for full-duplex

◎ Back pressure flow control for half-duplex

◎ Standard 19” Rack-mount size, 1U height



Standards •IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE802.3ab standards

Ports •Twenty-Four (24) 100BASE-TX copper ports

•Two (2) 1000BASE-T copper ports

Media support •10BASE-T: Category 3, 4 or 5 TP

•1000BASE-T/100BASE-TX: Category 5 TP

Bandwidth •1000BASE-T: 2000/200/20Mbps

•100BASE-TX: 200/100/20/10Mbps

Forwarding/Filtering Rate •1488100 packets/second per port@1000Mbps maximum

•148810 packets/second per port@100Mbps maximum

•14881 packets/second per port@10Mbps maximum

Latency •1µsec@1000Mbps minimum

•2.6µsec@100Mbps minimum

•16µsec@10Mbps minimum

MAC Addresses •Embedded 8K MAC address table, Self-Learning

Buffer memory •Embedded 2.5Mbits packet buffer

Duplex Modes •Auto-Negotiation

Crossover •Auto-MDI/MDIX Crossover function for each port

LED Indicators •per unit : Power

•per port : Link/Activity , 100Mbps(1~24 Port)

•Link/Activity , 1000Mbps ,100Mbps(25~26 Port)

Power Supply •Internal Full range Auto-Switching

Environment •Operating temp: 0~45°C(32~113°F),Storage temp: -20~70°C(-4~158°F)

•Humidity: 10%~90% Non-Condensing

Dimensions •440x140x44mm

Certifications •FCC Class A,CE
