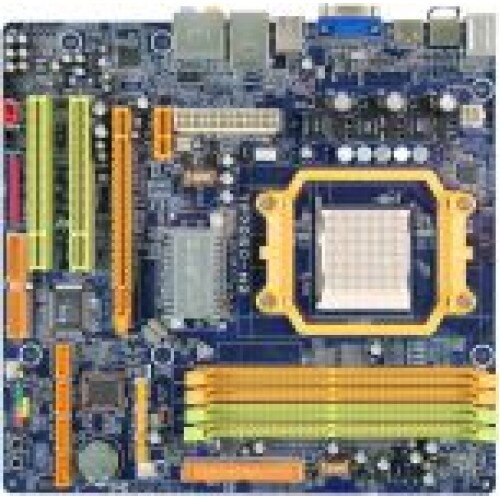

BIOSTAR TFORCE TF7050-M2 SOCKET AM2

• Processor:

Socket AM2, Micro ATX

Supports AMD Athlon 64 X2/64/FX/Sempron Processors

Support AMD HyperTransport up to 2G

Supports AMD Cool'nQuiet Technology

Fully support HDMI function under Windows Vista

OS Support:Win2000 / WinXP / WinXP 64 / Vista / Vista 64


Enlarge Pic







• Chipset:

nVIDIA GeForce7050PV + nForce630a(MCP68PV)

• Memory:

Maximum 8GB

4 x DDR2 SDRAM DIMMs

Dual Channel DDR2 400/533/667/800 MHz
• Slots:

2 x PCI

1 x PCI-E x 1

1 x PCI-E x 16
• IDE:

Up to 2 EIDE devices

Ultra DMA 33/66/100//133
• I/O:

1 x PS/2 Mouse, 1x PS/2 Keyboard Port

1 x VGA Port

1 x TV-OUT Port

1 x HDMI Port

1 x DVI connecter

10 x USB 2.0 (4 x Rear USB 2.0 , 6 x Front USB 2.0 )

6 x Audio Ports

1 x RJ-45 LAN Jack

1 x Floppy Connector

1 x IDE Connector

4 x SATA2 Connectors

1 x S/PDIF Out Connector

1 x System Fan Connector

1 x CPU Fan Connector

1 x CD-in Header

1 x Printer Port Header

1 x Front Audio Header
• SATA:

RAID 0,1,5,0+1

Up to 4 SATA2 drives
• Video:

NVIDIA GeForce 7050PV Graphics On Board Graphic Max. Memory Share 512 MB
• Audio:

Realtek ALC888 8+2-Channel HD CODEC
• LAN:

Realtek 8111B(PCI-E) Integrated 10/100/1000 Transceiver.
• Hardware Monitor:

CPU Fan Speed

CPU Voltage

DIMM Voltage

CPU Temperature
• Size:

Micro ATX Form Factor: 24.3cm (W) x 24.4cm (L)
• Accessories:

1 x User Manual

1 x HDD Cable

1 x FDD Cable

1 x SATA Cable

1 x Real I/O Panel for Micro ATX Case

1 x Fully Setup Driver

1 x DVI detachable connecter
