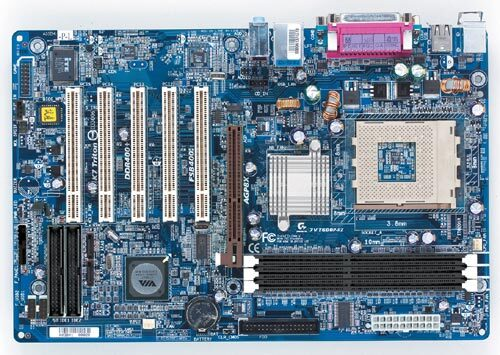

Gigabyte 7VT600P-RZ

Specifications
CPU
Socket A for AMD AthlonTM XP / AthlonTM /DuronTM processor
Chipset
Northbridge : VIA KT600
Southbridge : VIA VT8237
Integrated Peripherals
Realtek ALC655 AC97 codec Chip
VIA 6103L LAN Chip
Front Side Bus
400/333/266/200 MHz FSB
Memory
Type : DDR400(PC3200)/ DDR333 (PC2700) / DDR266 (PC2100) -184pin
Max capacity : 3GB
DIMM slots:3
Internal I/O Connectors
1 x FDD port
2 x Serial ATA connector
2 x UDMA ATA133/100/66 Bus Master IDE ports
2 x USB 2.0 connectors (support 4 ports)
2 x cooling fan pin header
1 x GAME/ MIDI connector
Expansion Slots
1 x AGP slot (8X/4X-AGP 3.0 compliant)
5 x PCI slots (PCI 2.2 compliant)
Back Panel Connectors
PS/2 Keyboard / Mouse
1 x RJ45 port
4 x USB 2.0 ports
2 x COM ports
Audio (1 x Line-in / 1 x Line-out / 1 x Mic) ports
1 x LPT
Form Factor
ATX, Dimension : ( 30.5x 20.0cm )
H/W Monitoring
System health status auto-detect and report by BIOS
H/W detect and report for power-in voltage, CPU voltage, and Fan Speed
Support auto temperature detect and thermal shutdown function
BIOS
2M bit flash ROM, Award BIOS
Other Features
Xpress Install
Xpress Recovery
EasyTune4
@BIOS
Q-Flash

+I/O sield krytka
