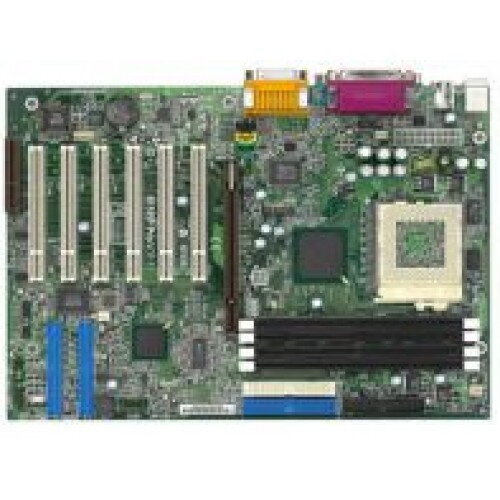

MSI 815EP Pro Socket 370 zakladna doska

CPU



• Support Socket 370 for Intel® Pentium® III or Celeron™ Processor

• Supports 500MHz~1GHz



Chipset



• Intel® 815EP Chipset

- AGP 4x/2x universal slot

- AGP Pro slot.

- Supports 66/100/133MHz FSB



• Intel® ICH2 Chipset

- AC'97 Controller Integrated

- 2 full IDE channels, up to ATA100

- Low pin count interface for SIO



FSB



• Supports 66/100/133MHz FSB



Main Memory



• Supports four 168-pin DIMM sockets.

• Supports 32 to 512MB using 16/64/128/256Mbit technology.



Slots



• One CNR (Communication Network Riser).

• One AGP (Accelerated Graphics Port) Pro slot.

• Six PCI 2.2 32-bit Master PCI Bus slots

- Supports 3.3v/5v PCI bus Interface.



On-Board IDE



• An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and

Ultra DMA33/66/100 operation modes.



Audio



• ICH2 chip integrated

- Supports 2/4 Channel Audio (for 815EP Pro-R)



On-Board Peripherals
• On-Board Peripherals include:

- 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.

- 2 Serial ports (COM A + COM B)

- 1 Parallel port supports SPP/EPP/ECP mode

- 1 Audio/Game port

- 4 USB ports (Rear x 2 / Front x 2)

* PC to PC USB Networking share one Front USB port



BIOS



• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface(DMI) function which records your

mainboard specifications.



Dimension
• 30.5 cm(L) x 21.0 cm(W) ATX Form Factor
Mounting
• 6 mounting holes.
