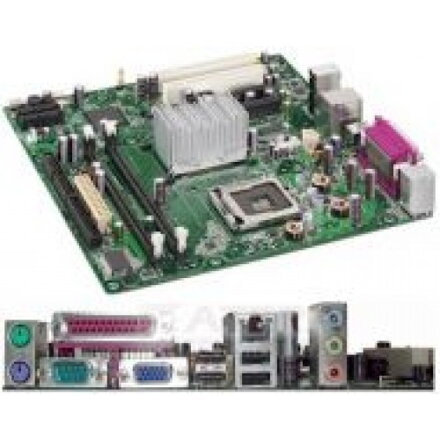

Intel Desktop Board D945GCNL

Form factor
microATX (9.60 inches by 9.60 inches [243.84 millimeters by 243.84 millimeters])
Processor
Support for an Intel® Core™2 Duo processor in an LGA775 socket with a 1066 or 800 MHz system bus
Support for an Intel® Pentium® D processor in an LGA775 socket with an 800 or 533 MHz system bus
Support for an Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus
Support for an Intel® Celeron® D processor in an LGA775 socket with a 533 MHz system bus
Memory
Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 667 MHz, or DDR2 533 MHz DIMMs
Support for up to 2 GBΣ of system memory
Chipset
Intel® 945GC Express Chipset
Audio
Intel® High Definition Audio subsystem in the following configuration:
6-channel (5.1) audio subsystem using the Realtek ALC888* audio codec
Video
Intel® Graphics Media Accelerator 950 (Intel® GMA 950) onboard graphics subsystem
I/O control
Legacy I/O controller for diskette drive, serial, parallel and PS/2* ports
LAN support
Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Realtek RTL8111B-GR* device
Peripheral interfaces
Eight USB 2.0 ports
Four Serial ATA IDE interfaces
One Parallel ATA IDE interface with UDMA 33, ATA-66/100/133 support
One serial port
One diskette drive interface
PS/2 keyboard and mouse ports
Expansion capabilities
Two PCI Conventional* bus add-in card connectors
One PCI Express* x1 bus add-in card connector
One PCI Express x16 bus add-in card connector
