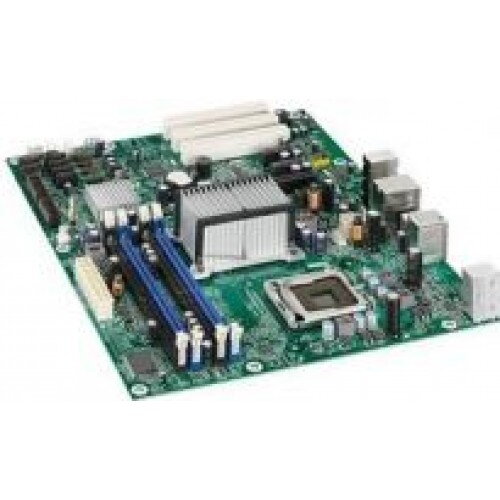

Desktop Board DP43TF

Form factor
ATX (11.60 inches by 9.60 inches [294.64 millimeters by 243.84 millimeters])
Processor
View supported processors for the most current list of compatible processors.
At product launch, this desktop board supports:
Support for an Intel® Core™2 Quad processor in an LGA775 socket
Support for an Intel® Core™2 Duo processor in an LGA775 socket
Support for an Intel® Pentium® processor in an LGA775 socket
Support for an Intel® Celeron® processor in an LGA775 socket
Support for an Intel® Celeron® processor 400 sequence in an LGA775 socket
Memory
Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 800 or DDR2 667 MHz DIMMs
Support for up to 8 GBΣ of system memory
Chipsets
Intel® P43 Express Chipset
Audio
Intel® High Definition Audio subsystem in the following configuration:
6-channel (5.1) audio subsystem using the Realtek* ALC888VC audio codec
Video
N/A
I/O control
Legacy I/O controller for serial header, and PS/2* ports
LAN support
Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82567V Gigabit Ethernet Controller
Peripheral interfaces
Up to 12 USB 2.0 ports
Six Serial ATA IDE interfaces
Two IEEE-1394a ports (1 external port, 1 internal header)
One serial port via header
One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
PS/2 keyboard and mouse ports
