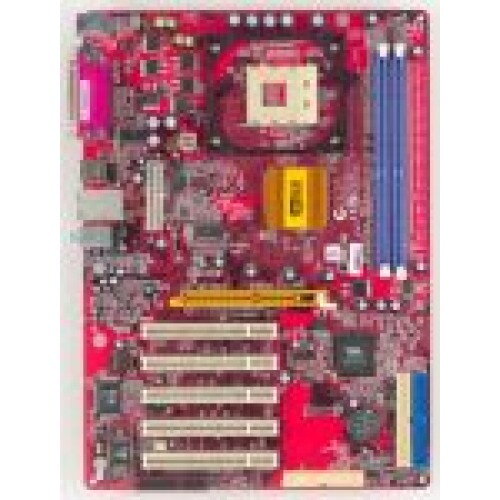

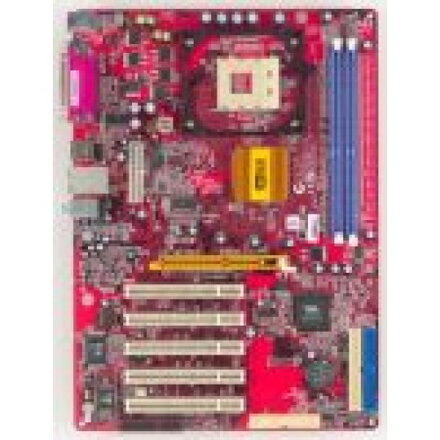

PCCHIPS M950 (V3.3) Socket 478 and FSB533/DDR333 Motherboard

CPU
Socket 478 for Intel Pentium 4 processor
FSB
533/400 MHz
Chipset
P4X400/8235
Memory
2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR333/266/200)
Maximum: 2GB
Expansion Slots
1 x AGP 8X
5 x PCI
1 x CNR slot
LAN
VIA VT6103 10/100Mbps Fast Ethernet PHY
Audio
VIA VT1612A 2-channel audio Codec
Compliant with AC97 2.2 specification
IDE
2 x UltraDMA 133/100/66
Back Panel I/O Ports
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Parallel Port
1 x Serial Port
4 x USB 2.0 Ports
1 x RJ 45 Port
1 x Audio I/O (Line-in, Line-out and Mic-in)
Internal I/O Connectors amp; Headers
20-pin ATX power supply connector
4-pin ATX 12V power supply connector
1 x Floppy connector-support 360K~2.88MB FDDs
1 x IrDA for SIR header
1 x USB card reader header
1 x USB header support additional 2 USB2.0 ports
1 x Front panel switch/LED header
1 x Speaker header
CPU / SYS FAN headers
1 x CD in header
1 x Front panel audio header
System BIOS
AMI 2Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification
Form Factor
ATX Form Factor, 305*220mm
