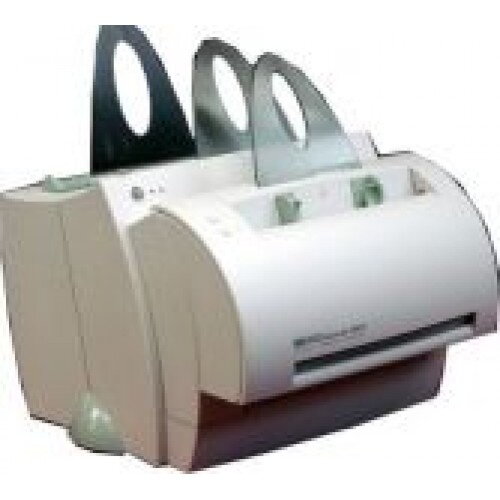

HP LaserJet 1100A Printer/Copier/Scanner

Printer specifications
Characteristic
Description
Technology
Dry-type electrophotography
Interfaces and Connectivity
High-speed bidirectional IEEE 1284 compliant parallel port (C-type connector) with cable included in the box
Print speed and processor
Up to 8 pages per minute (letter-sized paper)



Motorola Cold Fire 5202, 35 MHz
Resolution
600 x 600 dpi plus HP’s Resolution Enhancement technology (Ret)
Toner
One-piece HP UltraPrecise print cartridge; average 2,500 pages at 5% coverage. EconoMode printing uses up to 50% less toner.
Fonts
26 Intellifont scalable typefaces built-in (printer fonts)
Base Memory



Upgrade memory expansion
2 MB standard plus HP’s Memory Enhancement technology(Met)



Expandable to 18 MB with industry-standard DIMM (Dual-In-Line Memory Module)



One DIMM slot available for a 4, 8, or 16 MB RAM DIMM
Printer Language
HP PCL 5e
Paper-input bin capacity
125 sheets of regular weight 20-lb. (75 g/m squared) paper or up to 10 envelopes
Characteristic
Description
Paper-output bin capacity
100 sheets of regular weight 20-lb (75 g/m squared) paper
Straight-through output path
Bottom slit in printer door for printing envelopes and heavy weight media
Media Sizes
Paper: A4, Letter, Legal, and custom paper sizes. Envelope: Executive, B5, C5, DL, Monarch, Com-10, and custom envelope sizes.
Minimum paper size
76 x 127 mm (3 x 5 inches)
Maximum paper size
216 x 356 mm (8.5 x 14 inches)
Media Weights
16 to 28 lbs. (60 to 105 g/m squared) using paper output bin



16 to 43 lbs. (60 to 163 g/m squared) using front output slot
Media Types
Plain paper, envelopes, labels, transparencies, card stock, and postcards
Duty cycle
7,000 single-sided pages per month
Power Requirements
110 V = 100/127 V AC 50/60 Hz. Cannot be converted to 220.
Power Consumption
Peak inrush current is 240V; 40A peak (20 degrees C, from cold start). Power consumption is 240V; maximum of 615W, average of 200W, 200W printing; 7 W PowerSave (sleep) mode
Product Certifications
UL listed; CSA certified; complies with IEC 825-1/EN 60825-1 and IEC 950/EN 60950; FCC Class B certified; CISPR-22 class B; CDHR certified Class 1 Laser Product (safe for office/EDP use); Energy Star compliant.
Operating Environment
Acoustics (ISO9296): Printing: 55 dB operator position, 46 dB bystander, 6.1 Bels sound power level, PowerSave mode 0 dBA



Operating Temperature: 10 degrees C to 32.5 degrees C (50 degrees F to 90.5 degrees F)



Relative Operating Humidity: 20% to 80% (no condensation)
Warranty
One year with Express Exchange (U.S. and Canada only) Printer is supported in country of purchase.
NOTE:
For more detailed information regarding printer paper specifications, refer to the HP LaserJet Printer Family - Print Media Guide.
Copier/scanner specifications
Characteristic
Description
Print speed
Up to 8 pages per minute
Paper input bin capacity
Approximately 20 sheets of regular weight 20-lb. (75 g/m squared) paper
Minimum paper size
50.8 x 90 mm (2 x 3.5 inches)
Maximum paper size
216 x 762 mm (8.5 x 30 inches)
Media Weights
16 to 42 lbs.
Resolution
600 dpi enhanced (300 dpi optical) with 256 levels of gray; Text Mode, Photo Mode, and Combination Mode for optimal results
Duty Cycle
2000 Pages per month
Twain Compliance
Twain 1.6
Power Consumption
185 W copying; 15 W scanning
Operating Environment
Acoustics (ISO9296): Quick copy; 61 dB operator position, 53 dB bystander, 6.5 Bels sound power level
