Features and specifications

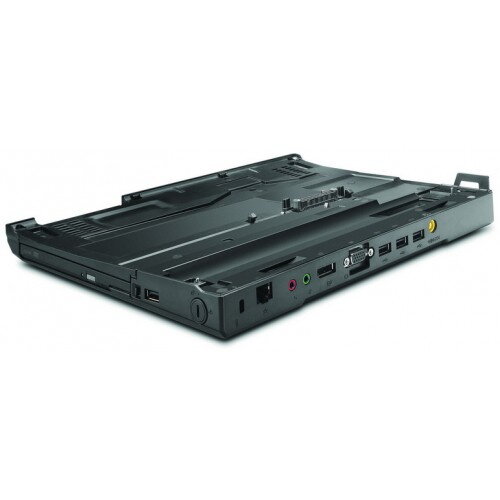

The ThinkPad X200 UltraBase (43R8781) snaps easily onto your ThinkPad X200 Series and X201 Series ultraportable or tablet system for portable expansion. It features:
An Ultrabay Slim for device expansion for the following available options:
ThinkPad Serial ATA Hard Drive Bay Adapter III (43N3412)
ThinkPad DVD-ROM Ultrabay Slim 9.5mm Drive II - SATA (43N3292)
ThinkPad DVD Burner Ultrabay Slim 9.5mm Drive II - SATA (43N3229)
An Ultrabay Slim is also compatible to the following discontinued options::
ThinkPad Serial ATA Hard Drive Bay Adapter II (43R1980)
ThinkPad DVD-ROM Ultabay Slim 9.5mm Drive - SATA (43N3212)
ThinkPad CD-RW/DVD-ROM Ultrabay Slim 9.5mm Drive - SATA (43N3213)
ThinkPad DVD Burner Ultrabay Slim 9.5mm Drive - SATA (43N3214)
ThinkPad Blu-ray Burner Ultrabay Slim 9.5mm Drive - SATA (43N3215)
ThinkPad Blu-ray Burner Ultrabay Slim 9.5mm Drive II - SATA (43N3230)
Integrated second battery charger to charge a spare battery, all X200 Seriesor X200 Tablet Series batteries, by:
Opening the access door on the X200 UltraBase
Connecting the spare battery to the X200 UltrabBase integrated battery charger
Standard communication and device ports, including Gigabit Ethernet (RJ-45), and four USB 2.0.
Video capabilities for attaching up to two external monitors:
DisplayPort monitor port supporting 2560 x 1600 maximum resolution.
VGA analog port supporting 2048 x 1536 maximum resoution.
Audio capabilities: Microphone in, Headphone out, and integrated stereo speakers.
Integrated key lock and cable lock slot physically secures the ThinkPad system and ThinkPad X200 UltraBase
The cable lock and key lock operate seperately
The cable lock secures the ThinkPad X200 UltraBase to the workspace (desk, table, pole, furniture, wall)
The cable lock slot supports attachment of Kensington Cable Locks from Lenovo.
The separate key lock, on the side of the ThinkPad X200 UltraBase, secures the ThinkPad to the ThinkPad X200 UltraBase
To remove the ThinkPad, from the ThinkPad X200 UltraBase, the user turns the seperate key. The user does not need to remove the cable lock from the ThinkPad X200 UltraBase
Includes two security keys
Compatible for use with Lenovo Easy Reach Monitor Stand (55Y9258)
Supports attachment of one of the following power adapters:
90W Ultraslim AC/DC Combo Adapter (41R4493)
90W AC Power Adapter (40Y7659)
65W AC Power Adapter (40Y7696)
90W Slim AC/DC Power Adapter (41N8460)
Notes:
Attach two monitors for multiple monitors by using the DisplayPort and VGA analog video ports. The ThinkPad X200 display is disabled (blank).
The X200 UltraBase DisplayPort supports attachment of the following DisplayPort monitor cables:
DisplayPort to Single-Link DVI-D Monitor Cable (45J7915) up to 1920 x 1200 maximum resolution
DisplayPort to VGA Monitor Cable (57Y4393) up to 1920 x 1200 maximum resolution
The X200 UltraBase will charge both the installed battery and the battery attached to the charger simultaneously when the AC adapter is plugged into the UltraBase.
The integrated second battery charger on the X200 UltraBase allows for charging of the second battery only. It does not function as a supplementary or auxiliary battery for the system.
The X200 UltraBase does not include a power adapter. It requires the power adapter provided with the system or one of the following:
90W Ultraslim AC/DC Combo Adapter (41R4493)
90W AC Power Adapter (40Y7659)
65W AC Power Adapter (40Y7696)
90W Slim AC/DC Power Adapter (41N8460)
Lenovo Easy Reach Monitor Stand (55Y9258) requires removal of the Lenovo Easy Reach Monitor Stand optional support pegs.
Physical specifications:
ThinkPad X200 UltraBase (43R8781):
Approximate height: 27 mm (1.0 in)
Approximate width: 295 mm (11.6 in)
Approximate depth: 233 mm (9,2 in)
Approximate weight: 0.73 kg (1.6 lb)
ThinkPad X200 UltraBase (43R8781) packaged in a carton:
Approximate height: 97 mm (3.8 in)
Approximate width: 305 mm (12.0 in)
Approximate depth: 363 mm (14.3 in)
Approximate weight: 1.4 kg (3.1 lb)
Operating environment:
Temperature: 5 degrees C (41 degrees F) to + 35 degrees C (95 degrees F)
Relative humidity: 8% to 80% (non-condensing)
Storage environment:
Temperature: - 20 degrees C (- 4 degrees F) to + 60 degrees C (140 degrees F)
Relative humidity: 5% to 95% (excluding rain)
Warranty
3 years â Customer Replaceable Unit (CRU)
Announce date (43R8781): 05 Aug 2008 (Worldwide)
Planned availability date (43R8781): 15 Aug 2008 (Worldwide)
Announce date (45K1736): 02 Jun 2009 (Europe/Middle East/Africa retail pack)
Planned availability date (45K1736): 05 Jun 2009 (Europe/Middle East/Africa retail pack)
Hardware compatibility
Description
Machine - Models
ThinkPad X200, X200s, X200t, X200 Tablet
All
ThinkPad X201, X201i, X201s, X201t, X201 Tablet
All
Lenovo Easy Reach Monitor Stand (55Y9258)*
All
Note:
ThinkPad X220, X220t, X220 Tablet: ThinkPad X200 Ultabase (43R8781) is not compatible with ThinkPad X220, X220 Tablet. For a list of ThinkPad X220, X220 Tablet compatible docks and port replicators, go to: Lenovo Support: Docking Stations and Port Replicators: Reference Guide
Lenovo Easy Reach Monitor Stand (55Y9258): Requires removal of the Lenovo Easy Reach Monitor Stand optional support pegs
ThinkPad X200 Ultrabase (43R8781) is not compatible with the following notebook and monitor stands:
Lenovo Essential Notebook Stand
ThinkPad Adjustable Notebook Stand
Packaging
ThinkPad X200 UltraBase
Two Security Keys
Setup Poster
Note: The X200 UltraBase does not include a power adapter. It requires the power adapter provided with the system or one of the following:
90W Ultraslim AC/DC Combo Adapter (41R4493)
90W AC Power Adapter (40Y7659)
65W AC Power Adapter (40Y7696)
90W Slim AC/DC Power Adapter (41N8460)
Agency approvals
FCC, VCCI, CE, UL, CB, BSMI, SASO
Additional product information
Service parts - Part number listing for your product
Publications - Instruction manuals for your product
Lenovo Support: Docking Stations and Port Replicators: Reference Guide - A list of other docking stations and port replicators
Lenovo Support: Replacement Security Keys - Describes information on replacement security keys
Lenovo Support: Monitors - Reference Guide - A list of monitors
Lenovo ThinkVision Monitors ( www.lenovo.com/thinkvision ) - ThinkVision monitor information
www.lenovo.com/accessoriesguide - Additional information on options and accessories. Includes the Docking Solutions Brochure, ThinkPad USB Port Replicator with Digital Video Datasheet and the Option Compatibility Matrix (OCM).
Personal Systems Reference (PSREF) - Comprehensive information on the features and technical specifications of Lenovo products.
