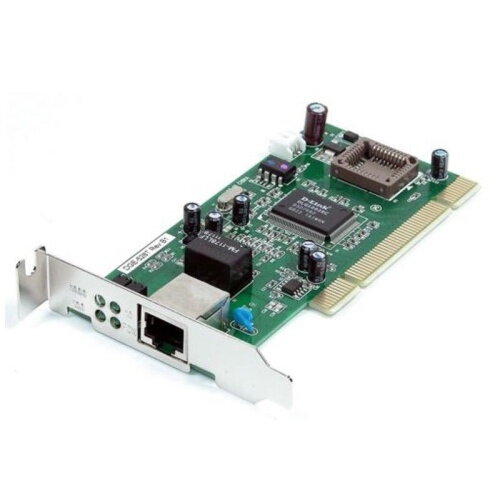

D-Link DGE-528T Copper Gigabit PCI low profile

Specifications

Features

High-Performance

10/100/1000 Mbps
Auto-Negotiation
PCI Interface
Plug-and-Play

Advanced Standards Based Enterprise Features

IEEE 802.1p Priority Tagging
IEEE 802.1Q VLAN Tagging
IEEE 802.3x Flow Control
Jumbo Frame Support (up to 7K bytes)
ACPI 2.0 WOL Power Management

Technical Specifications

General

Standards

IEEE 802.3, 802.3u, 802.3ab
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
PCI local bus 2.3
Universal Bus Support 3.3 V / 5 V

Topology

Star

Data Transfer Rate

Gigabit Ethernet:
Up to 2000 Mbps full duplex
Fast Ethernet:
100 Mbps half duplex
200 Mbps full duplex
Ethernet:
10 Mbps half duplex
20 Mbps full duplex

Interface

PCI
Half-height card suitable for low-profile cases

Supported Functions

7 KB Jumbo Frames
IEEE 802.1p Priority Queues
IEEE 802.1Q VLAN Tagging
Wake on LAN
Diagnostics Utility

Functionality

OS Support

Microsoft Windows 8/7/Vista/XP
Microsoft Windows Server 2000/2003/2008/2012
Linux for Kernel 2.4/2.6/3.2
Free BSD
NDIS 2 for DOS
Novell client for DOS
Novell client for server 5.x/6.x
Mac OS X 10.2/10.3/10.4

Diagnostic LEDs

10/100/1000 Link
10/100/1000 Activity

Physical

Dimensions

121 x 114.7 x 19 mm (4.76 x 4.52 x 0.75 inches)

Weight

46.6 grams (1.64 ounces)

Power Consumption

2.236 W maximum

Temperature

Operating: 0 to 40 °C (32 to 104 °F)
Storage: -25 to 55 °C (-13 to 131 °F)

Humidity

Operating: 5% to 90% non-condensing
Storage: 5% to 90% non-condensing

Certifications

CE
FCC
