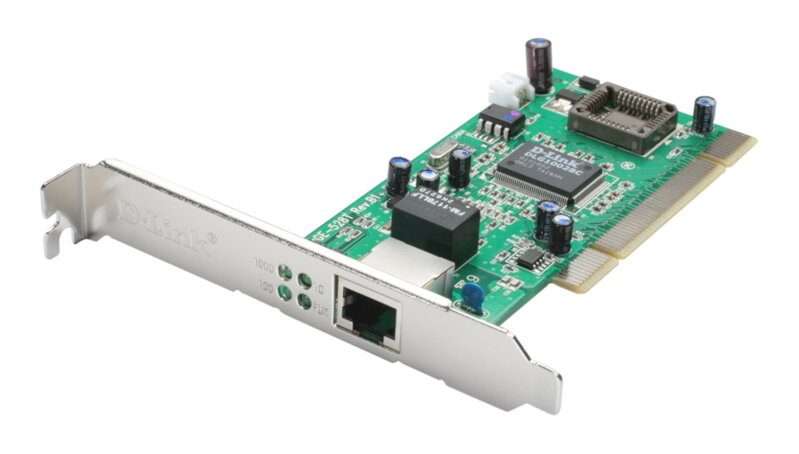

D-Link DGE-528T Copper Gigabit PCI

The D-Link DGE-528T is a high-performance 10/100/1000Mbps copper Gigabit PCI card for desktop PC. Installable in a PC equipped with PCI expansion slots, this card turns a desktop computer into a high-bandwidth Gigabit workstation or a server running at 2000Mbps full-duplex speed.

The D-Link DGE-528T PCI Gigabit Ethernet Adapter is a high performance adapter that adds high-speed gigabit connectivity to any PC with an available PCI slot. It is specifically designed to allow throughput at rates up to 2 Gbps in an economical upgrade.

Advanced Features and Security

The DGE-528T features onboard screening of 802.1Q VLAN Tagged Ethernet frames, allowing you to assign multiple subnets to each server and isolate devices within each VLAN from the rest of the network for better traffic control and security. It also supports 802.1p Priority Tagging to allow you to prioritise traffic. Support for TCP, UDP, and IP checksum calculation as well as TCP Segmentation improves overall system performance by shifting CPU-intensive tasks away from the host CPU and onto the DGE-528T itself. Support for advanced features such as 802.3x flow control and Jumbo Frames for network management ensures interoperability with your current networking equipment.

Remote Management

The DGE-528T includes additional advanced features such as Advanced Power Management and Wake-on-LAN support. It also supports remote network boot using both PXE and RPL, allowing network administrators to boot the PC from anywhere on the network.

Versatility

The DGE-528T supports all major operating systems, guaranteeing compatibility with existing workstation and desktop environments. Its half-height form factor allows it to be used in low-profile cases for compact PCs. The card also has a diagnostic utility tool, simplifying
troubleshooting.
Specs

Features

High-Performance

10/100/1000 Mbps
Auto-Negotiation
PCI Interface
Plug-and-Play

Advanced Standards Based Enterprise Features

IEEE 802.1p Priority Tagging
IEEE 802.1Q VLAN Tagging
IEEE 802.3x Flow Control
Jumbo Frame Support (up to 7K bytes)
ACPI 2.0 WOL Power Management

Technical Specifications

General

Standards

IEEE 802.3, 802.3u, 802.3ab
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
PCI local bus 2.3
Universal Bus Support 3.3 V / 5 V

Topology

Star

Data Transfer Rate

Gigabit Ethernet:
Up to 2000 Mbps full duplex
Fast Ethernet:
100 Mbps half duplex
200 Mbps full duplex
Ethernet:
10 Mbps half duplex
20 Mbps full duplex

Interface

PCI
Half-height card suitable for low-profile cases

Supported Functions

7 KB Jumbo Frames
IEEE 802.1p Priority Queues
IEEE 802.1Q VLAN Tagging
Wake on LAN
Diagnostics Utility

Functionality

OS Support

Microsoft Windows 8/7/Vista/XP
Microsoft Windows Server 2000/2003/2008/2012
Linux for Kernel 2.4/2.6/3.2
Free BSD
NDIS 2 for DOS
Novell client for DOS
Novell client for server 5.x/6.x
Mac OS X 10.2/10.3/10.4

Diagnostic LEDs

10/100/1000 Link
10/100/1000 Activity

Physical

Dimensions

121 x 114.7 x 19 mm (4.76 x 4.52 x 0.75 inches)

Weight

46.6 grams (1.64 ounces)

Power Consumption

2.236 W maximum

Temperature

Operating: 0 to 40 °C (32 to 104 °F)
Storage: -25 to 55 °C (-13 to 131 °F)

Humidity

Operating: 5% to 90% non-condensing
Storage: 5% to 90% non-condensing

Certifications

CE
FCC
