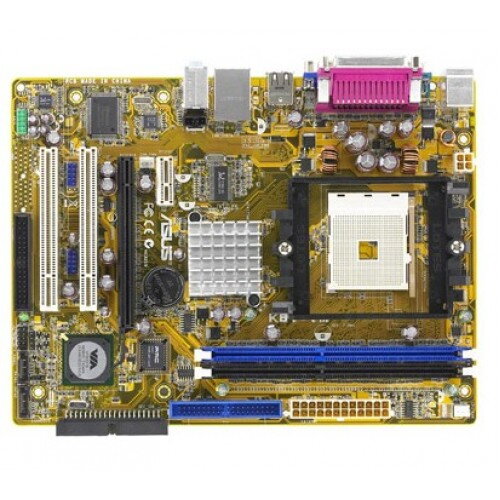

ASUS K8V-VM socket 754 VIA K8M890 Micro ATX AMD zakladna doska

Supported CPU

CPU Socket Type

754

CPU Type

Athlon 64 / Sempron

FSB

800MHz Hyper Transport (1600MT/s)
Chipsets

Chipset

VIA K8M890

South Bridge

VIA VT8237 A
Memory

Number of Memory Slots

2x 184pin

Memory Standard

DDR 400

Maximum Memory Supported

2GB
Expansion Slots

PCI Express x16

1

PCI Express x1

1

PCI Slots

2
Storage Devices

PATA

2 x ATA100 4 Dev. Max

SATA 1.5 Gb/s

2

SATA RAID

0/1
Onboard Video

Onboard Video Chipset

S3 Graphics UniChrome Pro IGP
Onboard Audio

Audio Chipset

Realtek ALC660

Audio Channels

6 Channels
Onboard LAN

LAN Chipset

Realtek 8201CL PHY

Max LAN Speed

10/100Mbps
Rear Panel Ports

PS/2

2

COM

1

LPT

1

Video Ports

D-Sub

USB 1.1/2.0

4 x USB 2.0

Audio Ports

3 Ports
Internal I/O Connectors

Onboard USB

2 xUSB 2.0 connectors support 4 ports
Physical Spec

Form Factor

Micro ATX

Dimensions (W x L)

9.6" x 7.2"

Power Pin

24 Pin
Packaging

Package Contents

K8V-VM

Rear I/O Panel Shield
