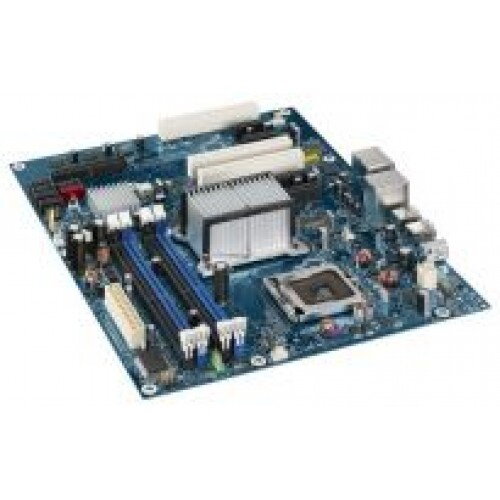

Intel Desktop Board DP35DP

Form FactorATX (12.00 inches by 9.60 inches [304.80 millimeters by 243.84 millimeters])ProcessorSupport for both 45nm amp; 65nm Intel® Coreâ¢2 Quad processors in an LGA775 socket with a 1333 or 1066 MHz system busSupport for an Intel® Coreâ¢2 Duo processor in an LGA775 socket with a 1333/1066/800 MHz system busSupport for an Intel® Pentium® Dual-Core processor in an LGA775 socket with an 800 MHz system busSupport for an Intel® Celeron® processor in an LGA775 socket with an 800 MHz system busMemoryFour 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) socketsSupport for DDR2 800 MHz, or DDR2 667 MHz DIMMsSupport for up to 8 GBΣ of system memoryChipsetIntel® P35 Express ChipsetAudioIntel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration:
8-channel (7.1) audio subsystem with five analog audio outputs and one optical S/PDIF digital audio output using the Sigmatel STAC9271D* audio codecVideoVideo support provided via PCI Express* graphics via add-in cardI/O ControlLegacy I/O controller for serial port via headerLAN SupportGigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82566DC Gigabit Ethernet ControllerPeripheral InterfacesTwelve USB 2.0 portsSix Serial ATA 3.0 Gbps ports, including 1 eSATA port with RAID supportTwo IEEE-1394a interfaces (1 external port, 1 internal header)Consumer IR receiver and emitter (via internal headers)One Parallel ATA IDE interface with UDMA 33, ATA-66/100/133 support (2 devices supported)One serial port via headerExpansion CapabilitiesThree PCI Conventional* bus add-in card connectorsThree PCI Express* x1 bus add-in card connectorOne PCI Express x16 bus add-in card connectorMicrosoft Vista* Premium ReadyWith a PC built with Intel Core 2 Duo or Intel Core 2 Quad processors, and the Intel® Desktop Board, you can experience a more responsive and manageable environment of Microsoft Windows Vista*.
