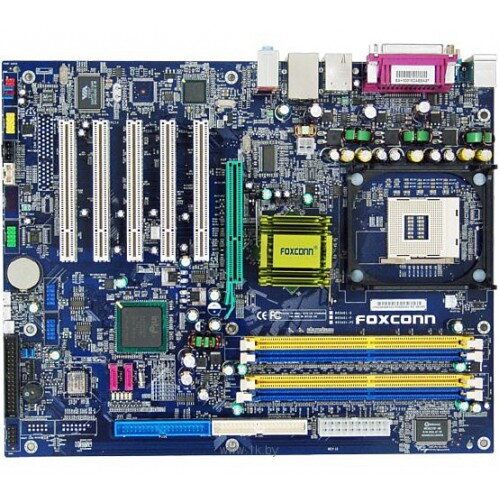

Foxconn 865A01-PE-6LS

Processor
Socket 478 for Intel® Pentium® 4 processors
Chipset
Intel® 865PE (MCH) + Intel® ICH5
Front Side Bus
800 MHz / 533 MHz / 400MHz
Memory
Dual channel memory architecture; 4 x 184-pin DIMM sockets support up to 4GB PC3200 / PC2700 / PC2100 DDR DRAM
VGA on Die
N/A
Expansion Slots
1 x AGP slot support 1X/4X/8X; 5 x PCI slots
IDE
Dual channel UltraDMA 100 / 66 / 33 â support up to 4 devices
Serial ATA(SATA)/RAID
Support 2 x Serial ATA / 150 devices
Audio
Realtek ALC650 5.1 channel audio (AC97); S/PDIF-out interface
LAN
Realtek 8101L 10 / 100 Mbps
IEEE1394
Optional â Order Foxconn Motherboard P/N 865A01-PE-6ELS
Back Panel I/O Ports
1 x line-in / line-out / MIC ports

1 x PS/2 keyboard

1 x parallel

1 x PS/2 mouse

1 x COM1

1 x RJ45

4 x USB 2.0
Internal I/O Connectors
2 x USB 2.0 headers; support 4 ports

1 x S/PDIF out connector

1 x CD-IN connector

1 x AUX IN header

1 x IrDA connector

1 x COM2 header
BIOS Features
4Mb flash ROM, Award BIOS, PnP, DMI 2.0, WfM 2.0, SMBIOS 2.3, ACPI 1.0b,
Support CD
Chipset Drivers, DirectX, VGA Driver, USB2.0 Driver, Audio Driver, Network Driver, Adobe Reader, Super Utility, Homepage,
Standards/Manageability
PCI 2.3, USB2.0; WfM 2.0, DMI 2.0,
Special Features
Wake on ring, USB, keyboard amp; mouse, STD (Suspend-to-Disk), STR (Suspend to RAM), Super Recovery, Super Boot, Super BIOS-Protect, BIOS Super Speed, Super Step, Super Update
Form Factor
ATX (12âx 9.6â)
