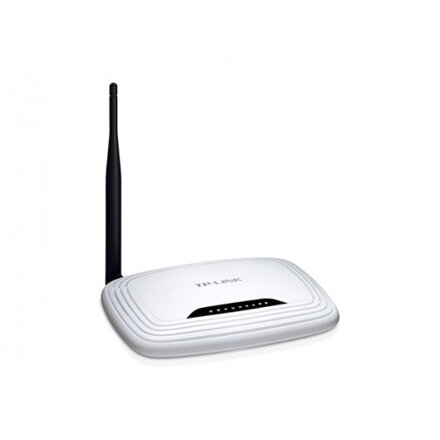

TP-LINK TL-WR741ND

150Mbps wireless data rates ideal for video streaming, online gaming and internet calling
Wireless security encryption easily at a push of WPS button
IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
WDS wireless bridge provides seamless bridging to expand your wireless network

Interface 4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT
Button WPS/Reset Button
Power On/Off Button
External Power Supply 5VDC/0.6A
Wireless Standards IEEE 802.11n*, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 6.9 x 4.6 x 1.3 in. (174 x 118 x 33 mm)
Antenna 5dBi Detachable Omni Directional (RP-SMA)
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power CE:
<20dBm(2.4GHz)
FCC:
<30dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control
WAN Type Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Management Access Control
Local Management
Remote Management
DHCP Server, Client, DHCP Client List,
Address Reservation
Port Forwarding Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols Support IPv4 and IPv6
Guest Network 2.4GHz Guest Network x1
OTHERS
Certification FCC, RoHS
Package Contents TL-WR741ND
1 detachable Omni directional antenna
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10
MAC® OS, NetWare®, UNIX® or Linux
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
