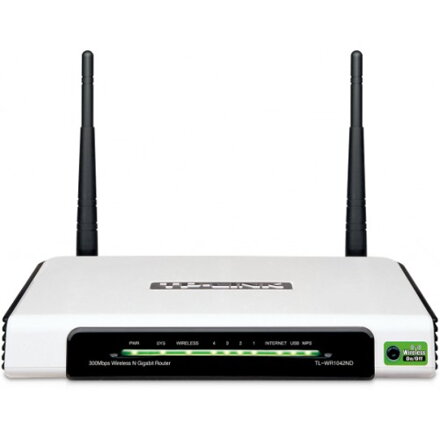

TP-LINK TL-WR1042ND 300Mbps Wireless N Gigabit Router

HARDWARE FEATURES
Standards and Protocols
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Interface
4 10/100/1000Mbps LAN Ports

1 10/100/1000Mbps WAN Port

1 USB 2.0 Port
Button
WPS Button, Wireless On/Off Button, Reset Button
External Power Supply
12VDC / 1.5A
Dimensions (W X D X H)
7.9 x 5.5 x 1.2 in. (200 x 140 x 28mm)
Antenna
2*3dBi Detachable Omni Directional Antennas (RP-SMA)
WIRELESS FEATURES
Frequency
2.4-2.4835GHz
Signal Rate
11b:Up to 11Mbps(dynamic)

11g:Up to 54Mbps(dynamic)

11n:Up to 300Mbps (dynamic)
EIRP
lt;20dBm(EIRP)
Reception Sensitivity
270M: -68dBm@10% PER;

130M: -69.5@10% PER

108M: -69.5@10% PER;

54M: -69.5@10% PER

11M: -85dBm@8% PER;

6M: -88dBm@10% PER

1M: -90dBm@8% PER
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security
64/128-bit WEP ,WPA/WPA2, WPA-PSK/WPA2-PSK
SOFTWARE FEATURES
WAN Type
Dynamic IP/Static IP/PPPoE/

PPTP(Dual Access)/L2TP(Dual Access)/BigPond
DHCP
Server, Client, DHCP Client List,

Address Reservation
Quality of Service
WMM, Bandwidth Control
Port Forwarding
Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS
DynDns, Comexe, NO-IP
VPN Pass-Through
PPTP, L2TP, IPSec (ESP Head)
Access Control
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security
DoS, SPI Firewall

IP Address Filter/MAC Address Filter/Domain Filter

IP and MAC Address Binding
Management
Access Control

Local Management

Remote Management
OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-WR1042ND

2 Detachable Omni Directional Antennas

Power supply unit

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista⢠or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
