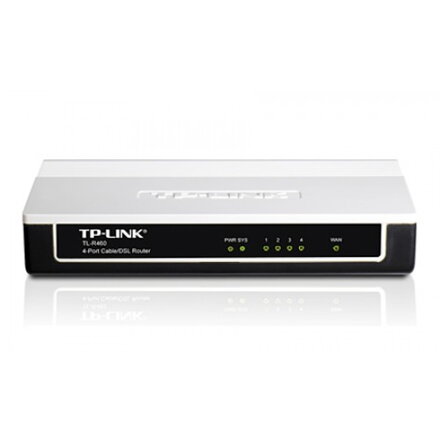

TP-LINK TL-R460 4-Port Cable/DSL Router

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, 802.3u, 802.3x,

TCP/IP, DHCP, ICMP, NAT, PPPoE
Interface
1 10/100Mbps WAN port

4 10/100Mbps LAN ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)
Button
Reset Button
External Power Supply
9VDC 0.6A
Dimensions ( W x D x H )
6.5x4.3x1.1 in. (165x108x28 mm)
Power Consumption
Max. 1.97W (With Power Adapter)
SOFTWARE FEATURES
WAN Type
PPPoE, Dynamic IP, Static IP, PPTP, L2TP, Dual Access and Bigpond Cable
Basic Function
DHCP Server/Client

MAC Address Modify/Clone

VPN Pass-through

NAPT amp; NTP

DDNS
DHCP
DHCP Server/Client

DHCP Client List

Address Reservation
Port Forwarding
Virtual Server, Port Triggering, DMZ Host, UPnP
VPN Pass-Through
PPTP, L2TP, IPSec (ESP)
Firewall Security
IP Address Filtering

MAC Address Filtering

Domain Name Filtering

IP/MAC Address Binding

Ignore Ping Packet From WAN

DoS Protection
Advanced Features
IP-based Bandwith Control
Management
Remote Management

Configuration Backup/Restore

Web-based Firmware Upgradeable
System Function
Traffic Statistics

NTP Synchronize

System Log
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-R460

Quick Installation Guide

Resource CD

Power Adapter

RJ-45 Ethernet Cable
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista⢠or Windows 7,

MAC® OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature: 0â~40â (32â~104â)

Storage Temperature: -40â~70â (-40â~158â)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
