FEATURES AND SPECIFICATIONS
Product Description

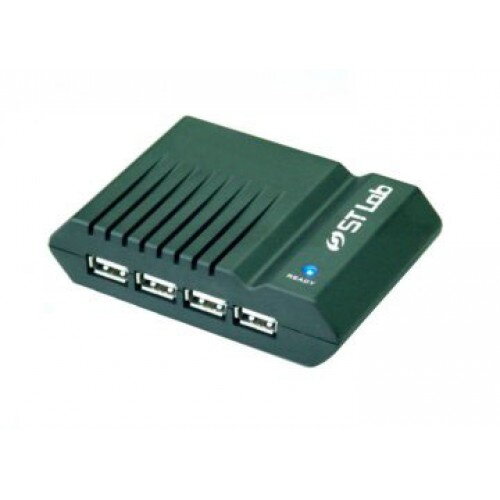

The USB2.0 4PB / USB2.0 4PBT is a 4 port Universal Serial Bus hub that allows users to connect up to for USB 2.0 devices to their USB 2.0 ready PC or Mac. It provides an out of the box industry standard Bus. The USB2.0 4PB / USB2.0 4PBT is a targeted at PC and Mac users that are expanding the number of USB 2.0 ports on their system.
Start benefiting from all the Hi-Speed USB 2.0 peripherals that can make your computer time more fun and more productive. At 480Mbps, 40 times faster than USB 1.1, USB 2.0 provides the required bandwidth for external storage, printing, scanning and CD burning. The USB2.0 4PB / USB2.0 4PBT Hi-Speed USB 2.0 4-port Hub lets you do more with your PC or Mac? With four additional USB 2.0 ports, the USB2.0 4PB / USB2.0 4PBT provides an affordable and convenient way to connect your computer with todayâs latest USB peripherals.
Features
Adds four USB 2.0 ports to computer
Compliant with USN 2.0/1.1/1.0
Supports bus power, self-power mode operation
Connectors :
Four port USB type A receptacles
One port USB type B receptacle
DC power jack
Support 480 / 12 / 1.5Mbps data transfer rate
Hot-swapping allows connection / disconnection of USB 2.0/1.1/1.0 devices without turning computer off
Works with all types of USB 2.0/1.1/1.0 devices including hubs, scanners, speakers PC cameras, modems, joysticks, digital camera, USB-to-printer / serial converters, keyboards, printers and more
Technical Specification
Standard
USB Rev.2.0
Connector
1 Upstream and 4 Downstream ports
Transmission Rate
1.5Mbps, 12Mbps and 480 Mbps
LED Display
System Status
Power
Bus powered â 2.5 W, 0.5 A @ 5vDC
Self Powered â 12.6W, 2.1 A @ 6 VDC
Per-Port Output Voltage
DC+5V
Dimension
6.7 x 10.0 x 2.6 L x W x H (cm)
Net Weight
85 (g)
Temperature
Operating 5oC ~ 45oC
Storage 0oC~55oC
Humidity
Operating 10oC~90oC
Storage 5oC~95oC
Conformance
FCC, CE
Color available
Black
