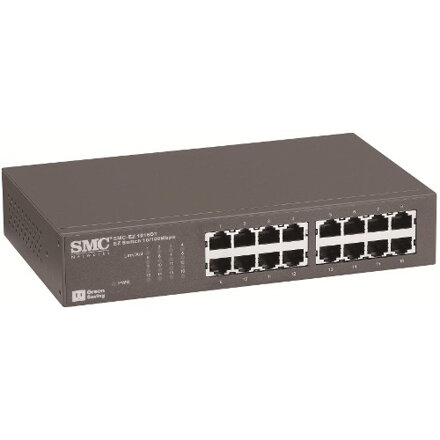

SMC SMC-EZ1016DT 10/100 16-port switch

SMC SMC-EZ1016DT 10/100 16-port switch
The EZ Switch⢠10/100 SMC EZ1024DT and SMC EZ1016DT are 24/16 port Fast Ethernet switches The 10BASE T/100BASE TX

Key Features and Benefits

The EZ Switch⢠10/100 SMC-EZ1024DT and SMC-EZ1016DT are 24/16-port Fast Ethernet switches. The 10BASE-T/100BASE-TX

ports deliver dedicated 10/100 Mbps links to each attached LAN segment â all with conventional cabling and adapters. Auto-negotiation

is used to select the optimal communication mode for each connection. Auto-sensing is used to select the optimal transmission speed

for each connection. With store-and-forward switching and flow control, maximum data integrity is always maintained, even under heavy

loading. Easy installation and reliability make this plug-and-play switch an ideal choice for smooth Fast Ethernet integration.

SMC Green Saving

SMC Green Saving Technologies are intelligent, innovative algorithms that detect link status and distance to best save power while

maintain p y erformance and stability.

⢠Power saving by Auto-Detection of the number of active ports

⢠Power saving by Cable length Auto-Detection

High Performance amp; Functionality

⢠Switching Fabric of 3.2 or 4.8 Gbps â non-blocking

⢠Filtering and forwarding at full wire speed on all ports

⢠Automatic address learning

⢠Buffered âstore-and-forwardâ architecture prevents propagation of bad packets

⢠Half- and full-dup p p yg lex flow control prevents packet loss under heavy loading

Easy to Install and Use

⢠Plug and Play nothing to configure

⢠Auto-Negotiation for automatic selection of speed and operating mode

⢠Comprehensive array of LEDs for âat-a-glanceâ monitoring of traffic on all segments

⢠Auto-MDIX ports eliminate concern over cabling and uplinks

⢠Desktop and rack mountable

Compatibility

⢠IEEE 802.3, 802.3u

⢠IEEE 802.3x full-duplex flow control
