2x DVI kabel
Memory512MB DDR3Memory Interface64-bitMemory Bandwidth12.6GB/sCUDA Parallel Processing Cores16Maximum Power Consumption17.5WThermal SolutionPassiveEnergyStar CompliantYesPhysical DimensionsSFF 2.731" H x 5.70" LDisplay ConnectorsDMS-59 to DP + DPNumber of Displays Supported2DisplayPort with AudioYesPCIe High Definition Audio SupportYesMaximum Digital Resolution2560 x 1600 at 60HzHDCP SupportYesGraphics APIsOpenGL 3.3, DirectX 10.1, Shader Model 4.1Compute APIsCUDA, DirectCompute and OpenCLNVIEW EnabledYesMosiac Mode EnabledYesWarranty3-Year WarrantyPNY Part #VCNVS300X1DP-PBMinimum System RequirementsWindows® 8, 7, Vista, XP SP3, Linux® , or Solaris®PCIe x1 expansion slot1GB or more of system memory, 2GB recommended200MB of available disk space for full driver installationBlu-ray, DVD-ROM or CD-ROM driveDisplayPort compatible display(s)Package ContainsNVIDIA NVS 300 by PNY x1 PCIe graphics boardFull height bracket (attached to card)Low profile bracket (unattached)DMS-59 to dual DisplayPort adapter cableSoftware installation and documentation discQuickStart Guide (printed)Installation Guide (PDF)
Features amp; Benefits
NVIDIA NVS 300 Architecture128-bit color precision12 pixels per clock rendering engine3D volumetric texture support3rd generation occlusion culling16 textures per pixel in fragment programs32x FSAA (Full-Scene Antialiasing)Rotated Grid FSAAWindow ID clipping functionalityCompliant with professional OpenGL and DirectX applicationsShading ArchitectureFull Shader Model 4.1 (Open GL 3.3, DirectX 10.1 class)Long fragment programs (unlimited instructions)Long vertex programs (unlimited instructions)Looping and subroutines (up to 256 loops per vertex program)Dynamic flow controlConditional executionDisplayPort AudioDolby Digital (AC3)DTS 5.1Dual Channel and Multi-channel (7.1 LPCM)Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192KHz16-bit, 20-bit and 24-bit word sizes
Fast 512 MB DDR3 graphics memoryDelivers high throughput to simultaneously play stunning HD video on each connected display.
Intelligent Power ManagementNVIDIA Power Management technology reduces overall system energy costs. It intelligently adapts the total power utilization of the graphics subsystem based on the applications being run by the end user. This power optimized design helps reduce Total Cost of Ownership (TCO) and increase reliability.
NVIDIA CUDA16 CUDA GPU parallel computing cores compatible with all CUDA accelerated applications. NVIDIA CUDA provides a development environment t and tool suite that unleashes new capabilities to solve various visualization challenges.
Low-Profile and Flexible Form FactorSimplifies IT administration and deployment throughout an enterprise. Regardless of desktop system (standard tower PC. workstation, small form factor system) or the display type (LCD, DLP, plasma) NVS 300 has the ability to fit into any existing installations without being disruptive.
Fanless designBuilt with a passive heatsink for higher reliability and a quieter desktop environment.
Versatile Display Connectivity OptionsProvides a means to connect into the most exhaustive range of display technologies in a low profile graphics card via low cost DMS-59 cable adapters.
Dual DisplayPort (with audio)Supports ultra-high resolution panels via the included DMS-59 to dual DisplayPort adapter (up to 2560 x 1600 at 30bpp) - enabling maximum range, resolution, refresh rate, and color depth designed to support the latest display technologies.
NVIDIA High Definition Video TechnologyNVIDIA high definition video technology is the combination of high-definition video processors and software that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for SD and HD video content. Features include, high-quality scaling, spatial temporal de-interlacing, inverse telecine and high quality HD video playback, all with low CPU utilization and power consumption.
NVIEW Advanced Desktop SoftwareThe NVIEW Advanced Desktop Software delivers maximum flexibility for single-large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.
Multi-Display Experience with NVIDIA Mosaic TechnologyMosaic Technology enables seamless taskbar spanning as well as transparent scaling of any application across up to 8 displays. Works over multiple displays or one ultra-high resolution display using a single or multiple NVS graphics cards (Windows 7 only).
Unified Driver Architecture (UDA)Part of the NVIDIA Forceware unified software environment (USE). The NVIDIA UDA guarantees forward and backward compatibility with software drivers. Simplifies upgrading to a new NVIDIA product because the latest driver supports all current NVIDIA products.
Microsoft Windows 7 SupportWindows 7 operating system marks a dramatic improvement in the way the OS takes advantage of the graphics processing unit (GPU) to provide a more compelling user experience. By taking advantage of the GPU for both graphics and computing, Windows 7 not only makes today's PCs more visual and more interactive but also ensure that they have the speed and responsiveness customers want.
Compatible with Industry Leading ApplicationsExtensive compatibility testing ensures that NVS 300 provides a stable and reliable graphics platform for industry leading business applications including Microsoft Office, Adobe Acrobat, Lotus Notes, OpenText Exceed and Exceed onDemand, TradeStation, Reuters Financial Software, pcAnywhere, Internet Explorer 9, Firefox 4, and many other essential business and enterprise applications.
Viac z kategórie
Doplnkové informácie
Kategória: | PCI Express x16 |
Zbernica: | PCI Express x16 |
VRAM: | 512MB |
Chladenie: | Pasívne |
Výstupy: | DMS-59 |
Low profile: | Nie |
Žiadne komentáre

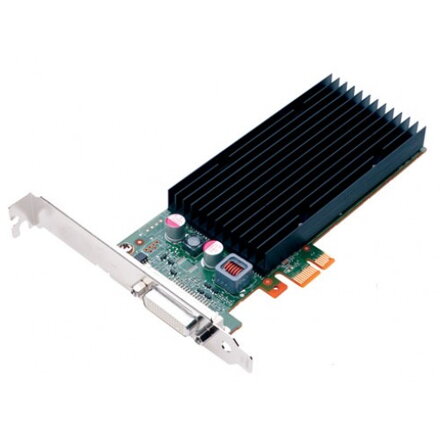

![PNY Nvidia Quadro NVS 300 512MB PCI Express x1 PNY Nvidia Quadro NVS 300 512MB PCI Express x1](/resize/e/800/800/files/imported/image/cache/catalog/pny-quadro-nvs-300-pcie-x1-500x500.jpg)
30 €
25 € bez DPH
