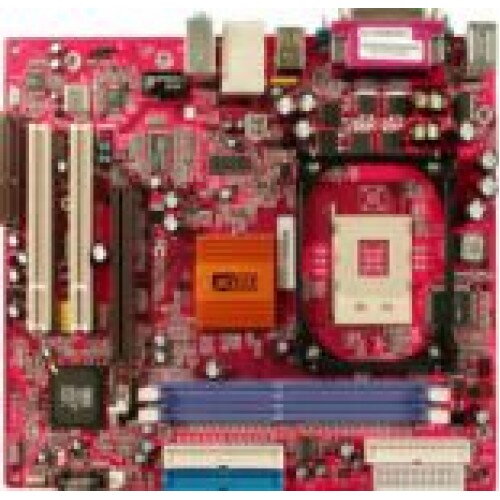

PCCHIPS M935DLU V2.0

Processor
One Socket 478 supports the

Intel® Pentium® 4 processor, 533/400 MHz FSB
Chipset
SiS 650GX B0 Stepping amp; 962L chipset with following features:

-Embedded Real256 3D Graphics with 64MB share memory

-Integrated USB2.0 Host Controller

· LPC I/O â ITE IT8705F

· System Hardware Monitor: Integrated in ITE IT8705F

· LAN  Realtek RTL8201BL 10/100Mbps Faster Ethernet PHY

· Audio  AC â97 ALC101 2-channel audio Codec
System BIOS
· AMI 2Mb Flash ROM

· Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

· Support ACPI revision 1.0 specification
Memory
· 2 DDR DIMM Sockets supports -Two 184-pin 2.5V DDR (DDR200/266/333) -Maximum: 2GB
Expansion Slots



· 2 PCI slots, 1 AGP slot, 1CNR slot
Form Factor amp; Layers
· MicroATX (244mm*190mm), 4 Layers
I/O Interface
· Back Panel I/O Ports

- PS/2 keyboard and mouse connectors

- Four USB2.0 Ports and a LAN connector

- One EPP/ECP mode parallel port

- One 16550 high-speed serial I/O port

- One VGA connector

- Audio ports (Mic, Audio-in, Audio-out port)

· Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 100/133)

· Supports 360K~2.88M Byte, 3 Mode FDDs or LS120

· ATX Power Supply Connector (4 Pin 12V power connector require)

· Ports, headers and others

-IrDA header

-Internal PC speaker header

-CD ROM/DVD Audio Input header

-2 Extra USB 2.0 Ports

-HDD LED, Reset Switch, Suspend LED, Power Switch headers

-CPU and Chassis Fan headers
RTC amp; Battery
· Integrate CMOS SRAM in SiS962L

· With CMOS hardware clear jumper
