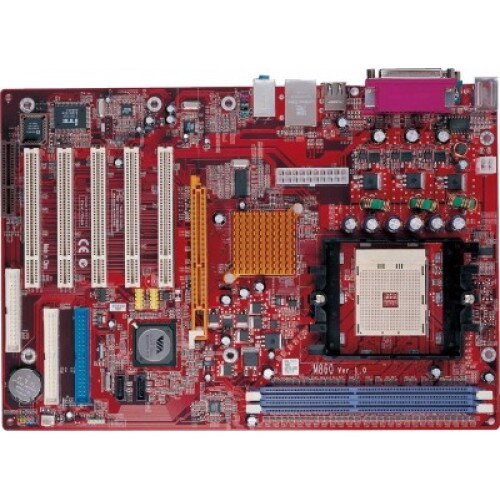

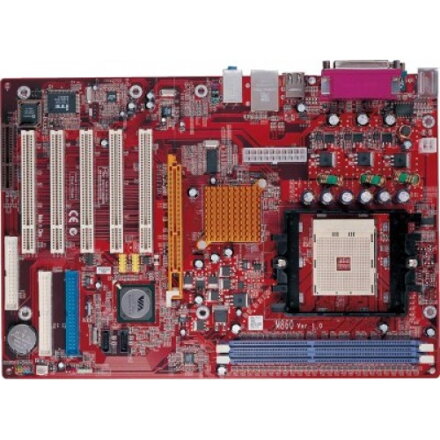

PCCHIPS M860 Ver 1.0

CPU

Socket 754 for AMD Athlon 64 / Sempron processor

FSB

800 MHz

Chipset

VIA K8T800 chipset family/VT8237

Memory

2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400/333/266)

Maximum: 2GB

Expansion Slots

1 x AGP 8X

5 x PCI

1 x CNR slot

LAN

VIA VT6103L 10/100Mbps Fast Ethernet PHY

Audio

C-Media CMI9761A 6-channel audio Codec

Compliant with AC'97 2.3 specification

IDE

2 x UltraDMA 133/100/66

Back Panel I/O Ports

1 x PS/2 keyboard

1 x PS/2 mouse

1 x Parallel Port

1 x Serial Port

4 x USB 2.0 Ports

1 x RJ 45 Port

1 x Audio I/O (Line-in, Line-out and Mic-in)

Internal I/O Connectors amp; Headers

20-pin ATX power supply connector

4-pin ATX 12V power supply connector

2 x USB 2.0 header support additional 4 USB2.0 ports

2 x Serial ATA connectors

1 x Front panel switch/LED header

1 x Front panel audio header

CPU / SYS FAN headers

1 x IrDA for SIR header

1 x Speaker header

1 x CD in header

1 x Floppy connector-support 360K~2.88MB FDDs

System BIOS

AMI 2Mb Flash ROM

Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Full support for ACPI revision 1.0 specification

Form Factor

ATX Form Factor, 305x210mm
