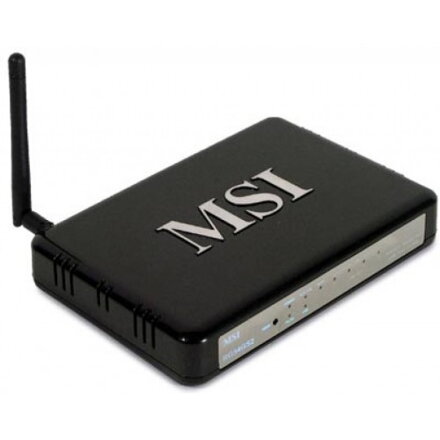

MSI RG54GS2 802.11b/g Wireless Router

LAN Port
4 x RJ45, 10/100 Mbps with Auto-MDI/MDIX
WAN Port
1 x RJ45, 10/100 Mbps with Auto-MDI/MDIXUSB Port
1 x USB Jack (type A), USB 2.0 Compliant
Input Power
DC 5V2A


Wireless Support
Standard
IEEE 802.11b / 802.11g
Data Rate
6/12/18/24/36/48/54Mbps in 802.11g mode1/2/5.5/11Mbps in 802.11b mode
Operating Frequency
2.4GHz
Range Coverage
Per cell indoors approx. 35-100 metersPer cell outdoors up to 100-300 meters
Antenna
2 dBi antenna x 1
Antenna Connector
R-SMA female x 1
Number of Channels
America/ FCC: 2.412~2.462GHz (11 Channels)Japan/ TELEC: 2.412~2.484GHz (14 Channels)Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Security
WEP encryption and WPA supported


Environment, Certification and Reliability

Operating Temperature
Temperature: 0~40oC, Humidity:10%~90% non-condensing
Storage Temperature
Temperature: -20~70oC, Humidity:0~95% non-condensing
EMC/Safety
FCC, CE, DGT


Operational amp; Functional Characteristic
Firmware PlatformMSI Proprietary KernelManagement MethodWeb-basedSupported WAN TypeStatic IP AddressDynamic IP Address (DHCP Client)PPP over EthernetMulti-session PPP over Ethernet (For Japan only)PPTPL2TP
Connection SchemeConnect on Demand / Auto-DisconnectManually Connect/DisconnectAuto ReconnectNAT FunctionalityOne-to-Many NATOne-to-One NATVirtual ServerSpecial ApplicationDMZ HostAccess ControlMAC-level Access ControlInbound/Outbound IP FilterDomain Access ControlFirewallNAT Firewall with SPI modeDoS DetectionEvent LoggingOn-web loggingSyslog supportedEmail AlertVPN SupportingIPSec, PPTP, LT2P Pass-ThroughRoutingStatic RouteUpgrade MethodWeb-basedWindows ApplicationOther FeaturesDDNS SupportedUPnP SupportedSNMP Supported
