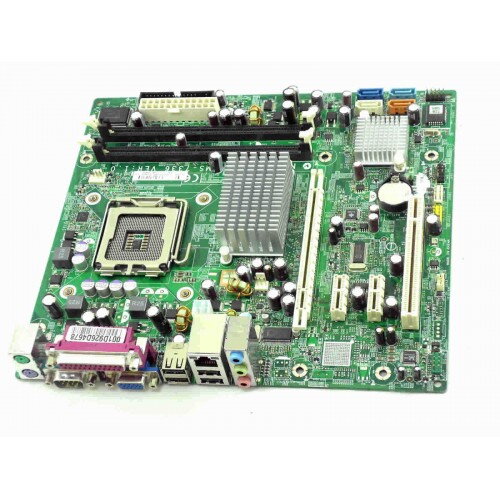

MSI MS-7336 for HP Compaq dx2300 motherboard

MS-7336 VER: 1.0 Motherboard Specifications.
CPU
Intel Socket LGA775  Support Processor Type:
Intel Core 2, Pentium Dual Core, Pentium D, Celeron, Pentium 4 with Hyper-Threading Technology3
CPU Support List
FSB
1066/800/533 MHz
Chipset
North Bridge
Intel 946GZ Express
South Bridge
Intel ICH7
Integrated Graphics
Intel (GMA 3000)
Memory
2 x 240-pin DDR2 DIMM slots Supports
DDR2 677/533 Dual Channel non-ECC, un-buffered memory (Max 4GB)
Expansion Slots
1 x PCI Express x16
2 x PCI Express x1
1 x PCI
Storage
4 x SATA 3Gb/s connectors

Supports HDDs, SSD
Audio
Realtek ALC888 â High Definition
Ethernet
Intel 82562xx - LAN 10/100Mb/s
Special Features
* CPU Smart Fan Function
* System Fan Fail Check
Rear Panel
4 x USB 2.0 ports

1 x VGA port

1 x RJ-45 LAN port
1 x Audio I/O

1 x Serial port
1 x Parallel port
1 x PS/2 green color for mouse

1 x PS/2 purple color for keyboard
Internal
1 x 4-pin CPU Fan connector

1 x 3-pin Chassis System Fan connectors

1 x 4-pin ATX 12V Power connector
1 x 24-pin ATX Power connector
1 x Floppy header
1 x Front Audio header

1 x Front Panel header
2 x USB headers
1 x Battery socket (3V)
1 x Clear CMOS jumper
BIOS
Form Factor
Micro-ATX
Hp/Msi MS-7336 Motherboard Supports: Win 7, Vista/XP
