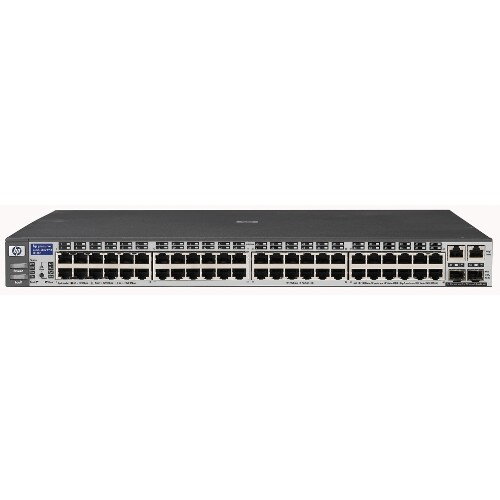

HP ProCurve Switch 2650-PWR J8165A 10/100Mbps + 1000Mbps 48 RJ-45 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-T)

Spec

Format

Rackmount

Standards

IEEE 802.1w Rapid Convergence Spanning Tree

IEEE 802.1AB Link Layer Discovery Protocol

IEEE 802.3af Power over Ethernet

IEEE 802.1p Priority

IEEE 802.3x Flow Control

IEEE 802.1D Spanning Tree

IEEE 802.3ad Link Aggregation Control Protocol

IEEE 802.1X Network Login

IEEE 802.1Q GVRP

Network Management Type

Managed

Jumbo Frames

No

Primary Ports

48 RJ-45 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-T)

1 RS-232C DB-9 console port

2 Dual Personality Ports each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or an open mini-GBIC slot (for use with mini-GBIC transceivers)

Primary Port Speed

10/100Mbps + 1000Mbps

Buffer Memory

8 MB Flash capacity

32 MB SDRAM

Protocols

RFC 783 TFTP

RFC 1542 BootP

RFC 768 UDP

RFC 793 TCP

RFC 2030 SNTP

DHCP Relay

RFC 2236 IGMP v1/v2/v3

RFC 1492 TACACS+

Secure Sockets Layer (SSL)

HTML and telnet management

RFC 1213 MIB II

RFC 2737 Entity MIB

RFC 2665 Ethernet MIB

RFC 3164 Syslog

RFC 2668 802.3 MAU MIB

RFC 2674 802.1p and IEEE 802.1Q Bridge MIB

RFC 951 BootP

RFC 854 Telnet

RFC 792 ICMP

RFC 826 ARP

RFC 3046 DHCP Relay Agent Information Option 82

ANSI/TIA-1057 LLDP Media Endpoint Discovery (MED)

SSHv1/SSHv2 Secure Shell

SNMPv1/v2c/v3

RFC 1493 Bridge MIB

RFC 2096 IP Forwarding Table MIB

RFC 2863 Evolution of Interface

RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)

RFC 2021 RMON probe configuration (RMON v2)

RFC 2613 SMON

RFC 2618 RADIUS Client MIB

PoE

Yes

Stackable

Yes

SNMP

Yes

QoS

Yes

LACP

Yes

Layer

3

Port Mirroring

Yes

Module Support

Yes

VLAN Support

No

Power

Voltage: 100-120 VAC/200-240 VAC

Current: 6.4 A

Power: 631 W

Frequency: 50/60 Hz

Dimensions

18.0" x 17.4" x 1.8"

Weight

16.3 lbs. (fully loaded)

Temperature

0ºC to 50ºC (32ºF to 122ºF)

Humidity

15 % to 95 % at 104 °F (40 °C), noncondensing
Features

Features

13.6 Gbps: wire-speed non-blocking architecture for low-latency throughput

Dual-personality functionality

Power over Ethernet (IEEE 802.3af) compliant

IEEE 802.3ad Link Aggregation Control Protocol (LACP) and ProCurve trunking

Spanning Tree Protocol (IEEE 802.1D)

IEEE 802.1w Rapid Convergence Spanning Tree Protocol

IEEE 802.1s Multiple Spanning Tree

Optional external redundant power supply

Basic IP routing

VLAN support and tagging

GARP VLAN Registration Protocol

Port security: allows access only to specified MAC addresses, which can be learned or specified by the administrator

MAC address lockout

IP lockdown

IEEE 802.1X: industry-standard way of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server

Web-based authentication

MAC-based authentication

Secure FTP

TACACS+: eases switch management security administration by using a password authentication server

Source-port filtering

Traffic prioritization (IEEE 802.1p)

Class of Service (CoS)

Layer 4 prioritization

RMON: provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events

Friendly port names: allow assignment of descriptive names to ports

ProCurve/IEEE Auto-MDIX

Dual flash images

Stacking capability

Find-Fix-and-Inform

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

LLDP-MED (Media Endpoint Discovery)
